Wingtree BM11 Tactile Switch Factory Lubed (10PCS)
- $3.50
$3.50- $3.50
- Unit price
- per
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
$3.50
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Free Returns
Learn More.
Description

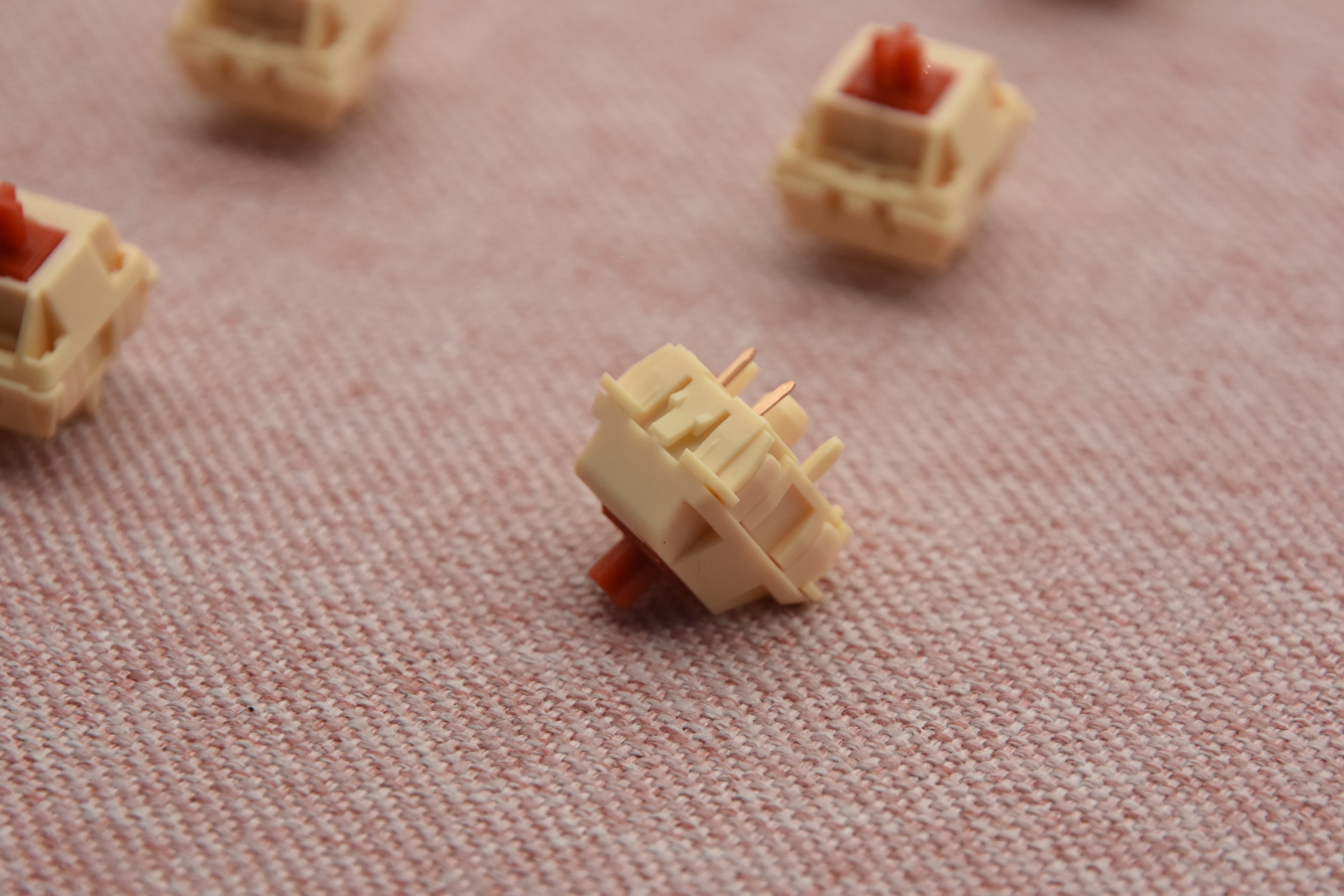

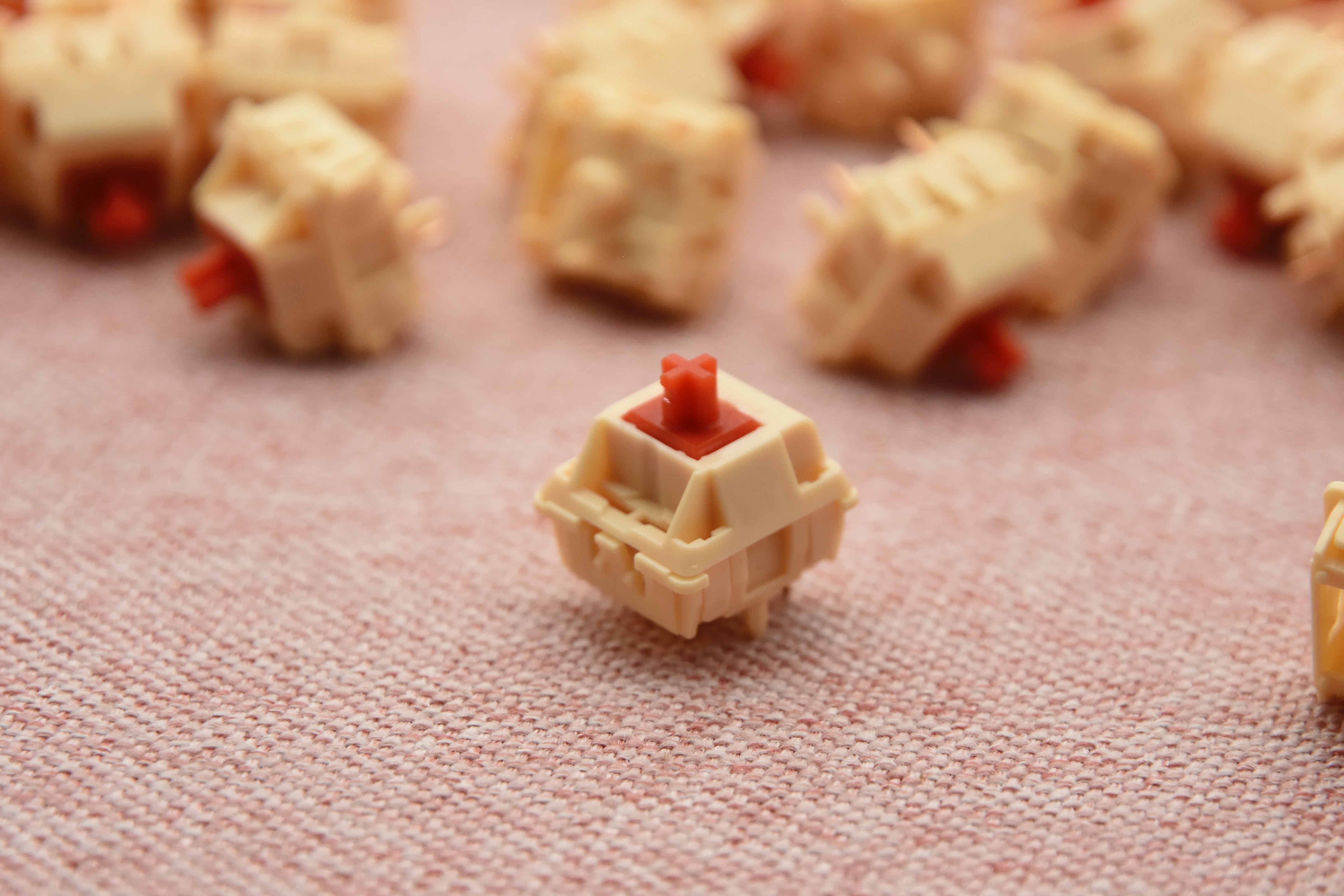

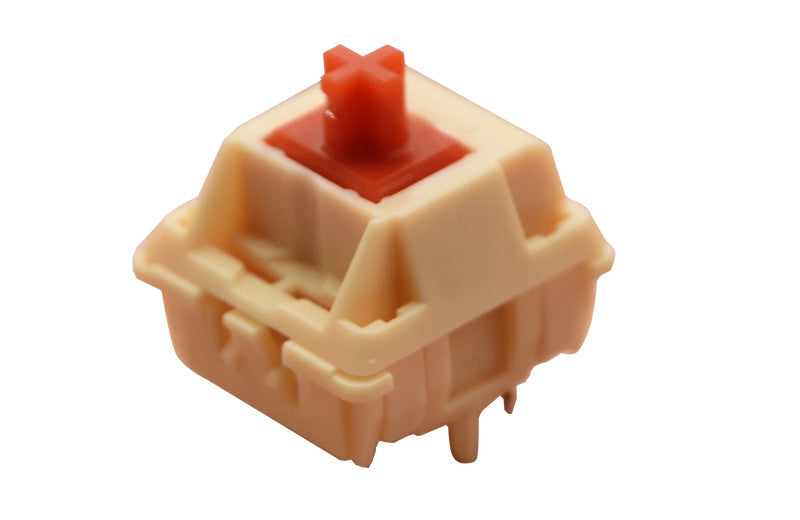

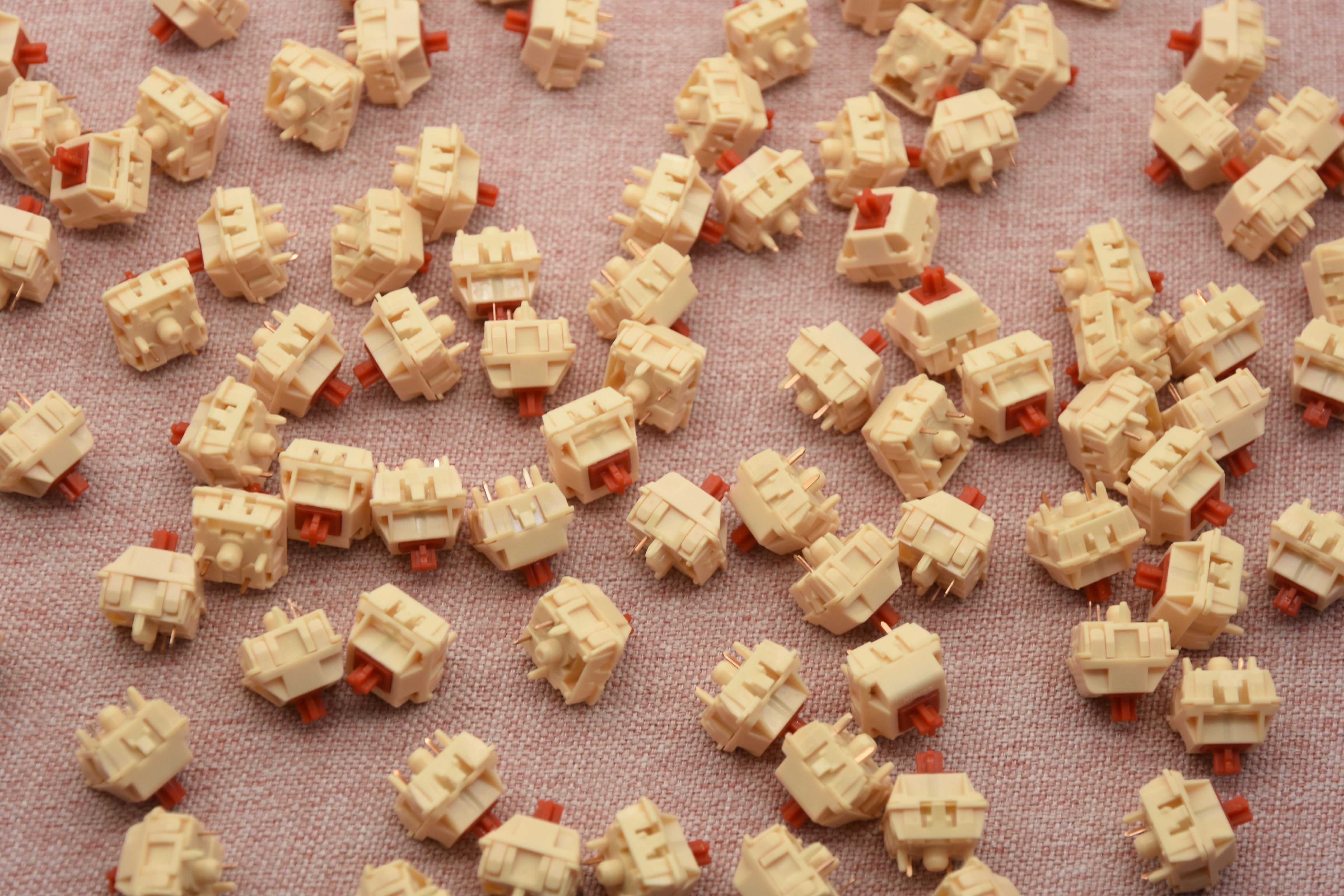

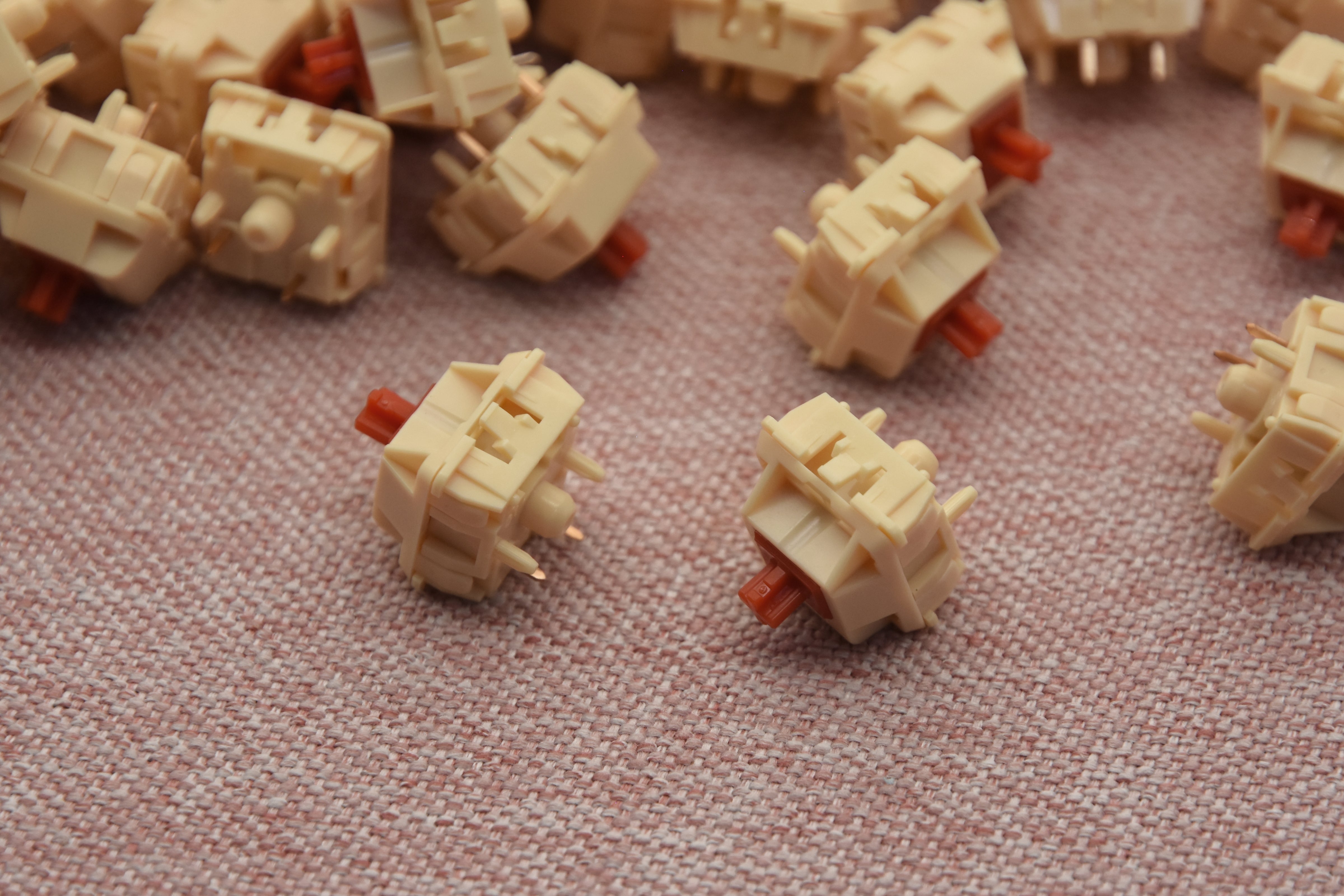

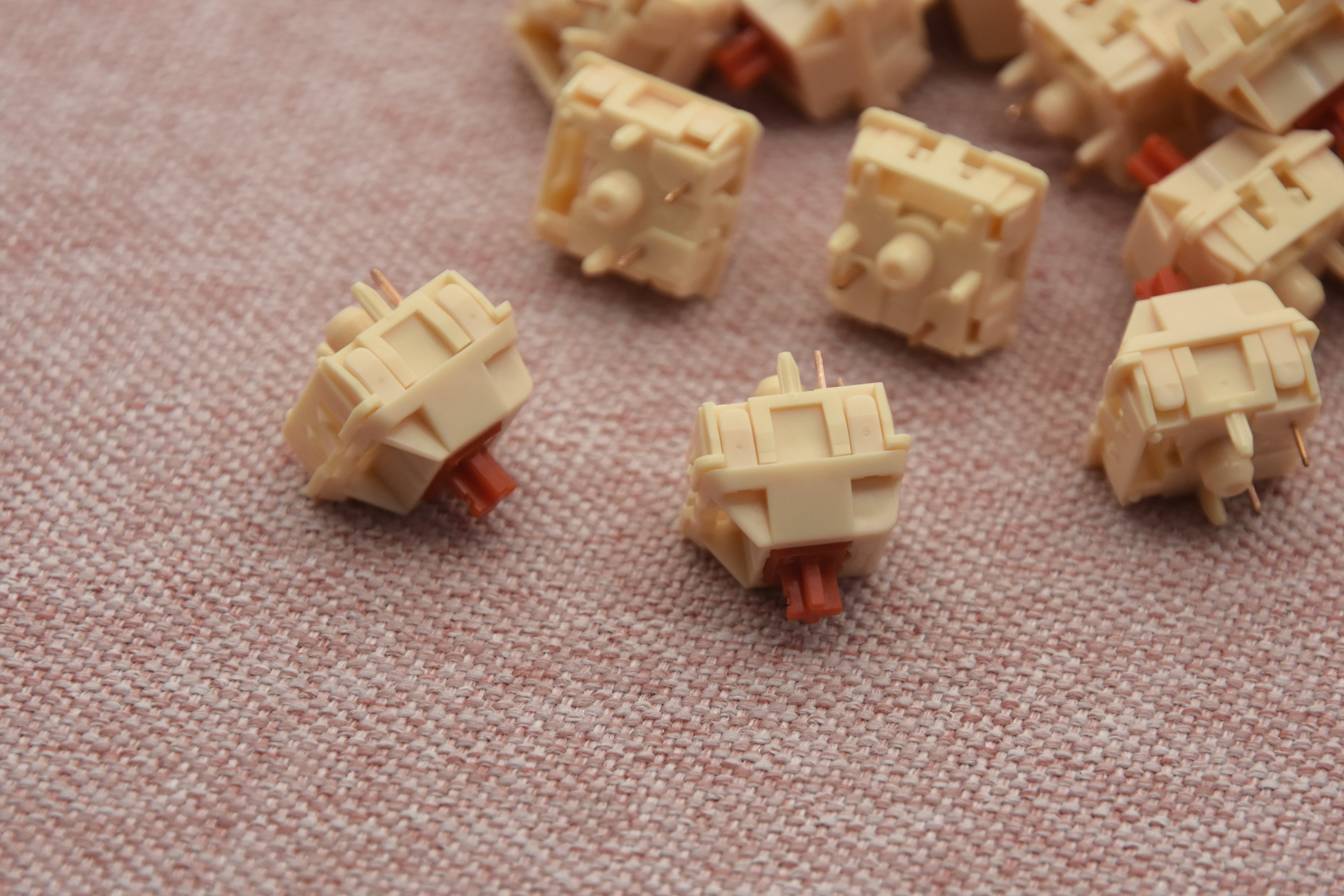

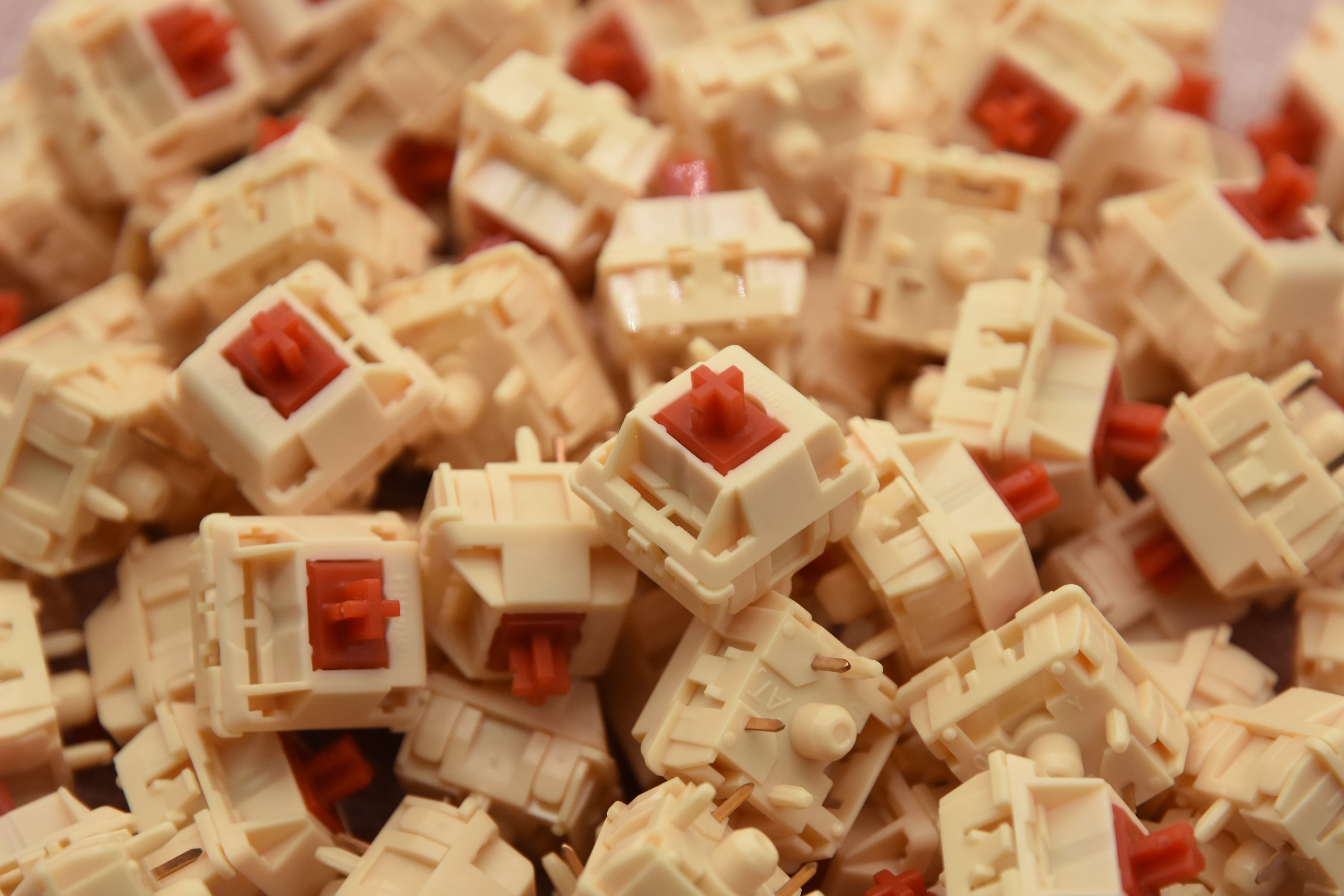

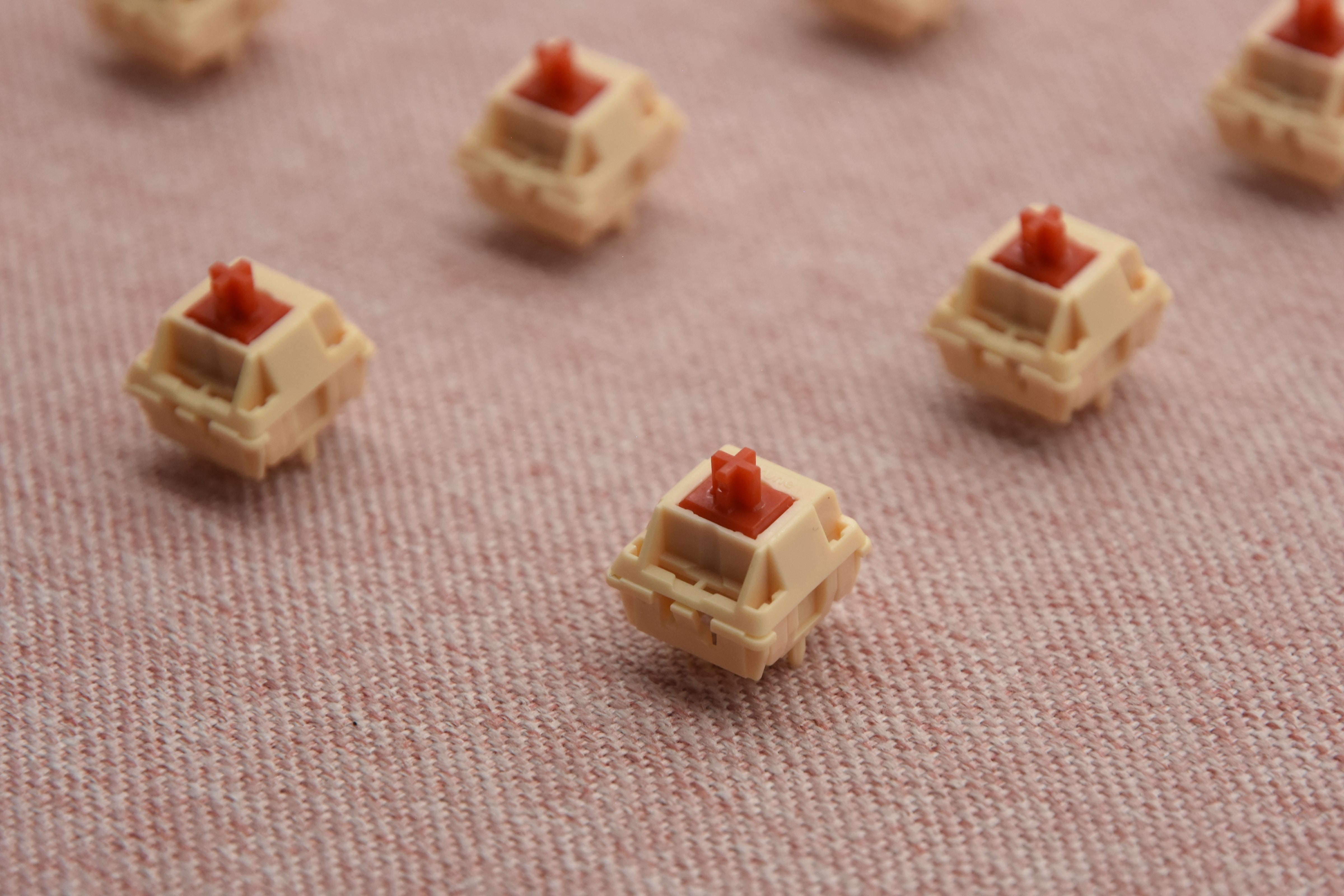

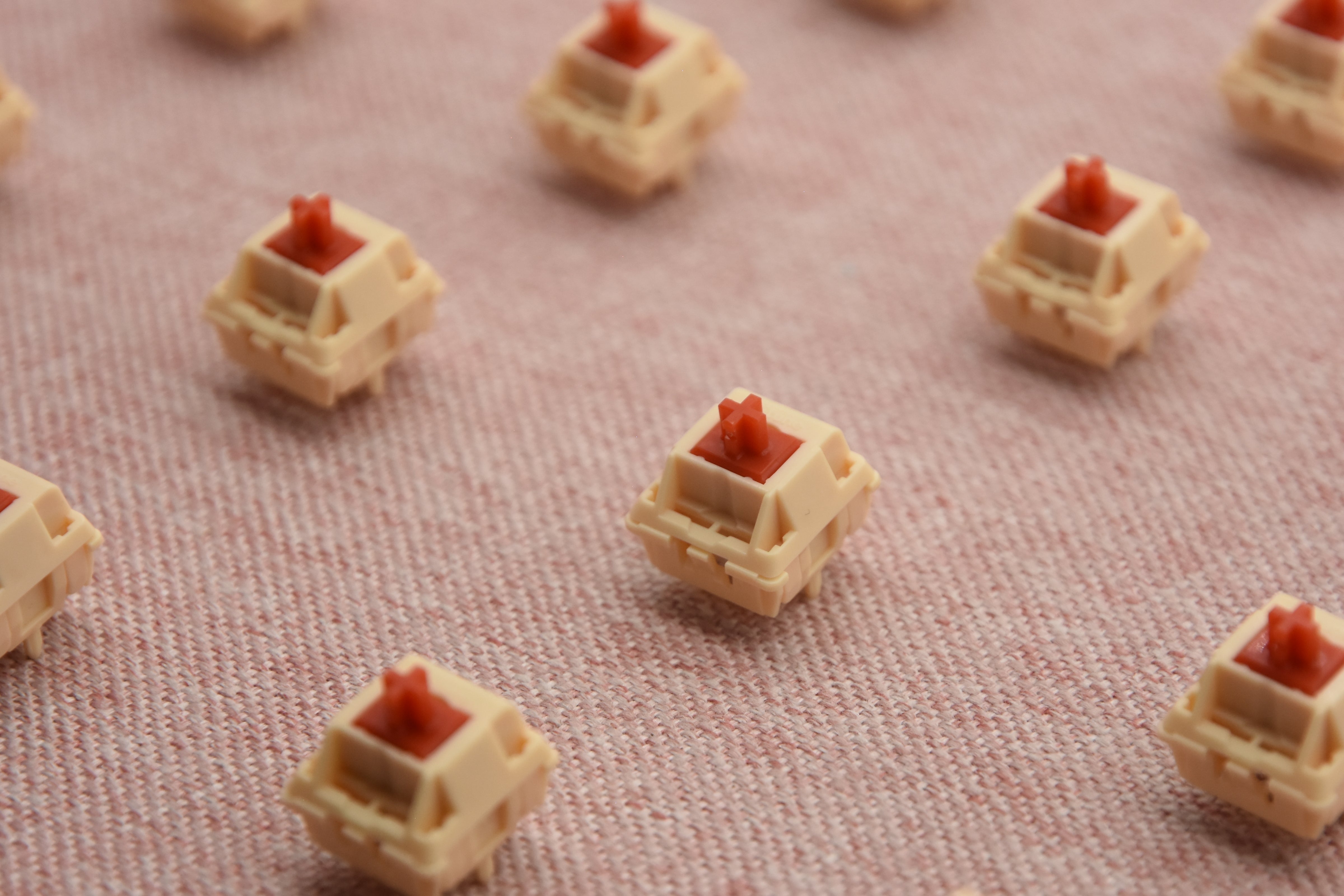

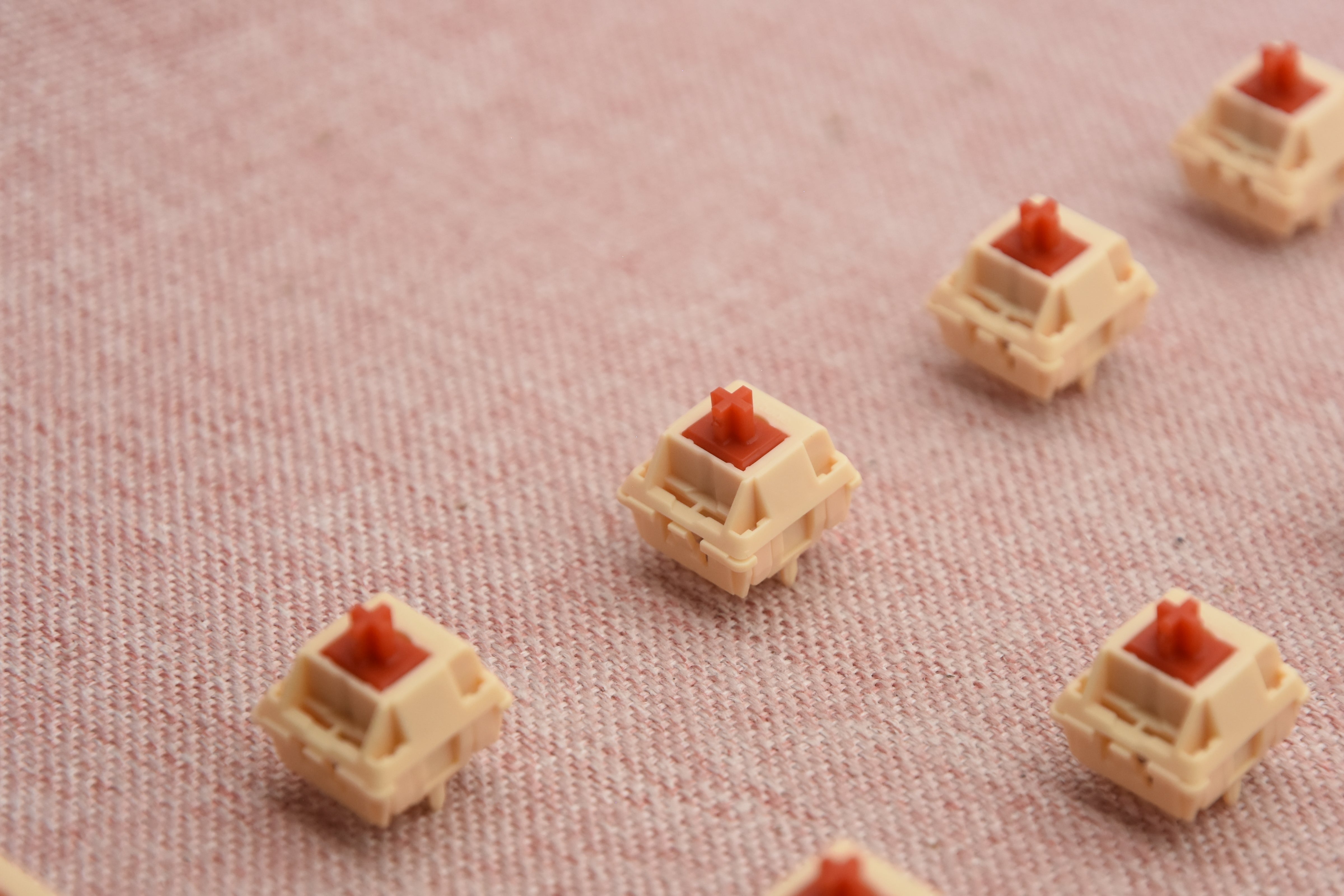

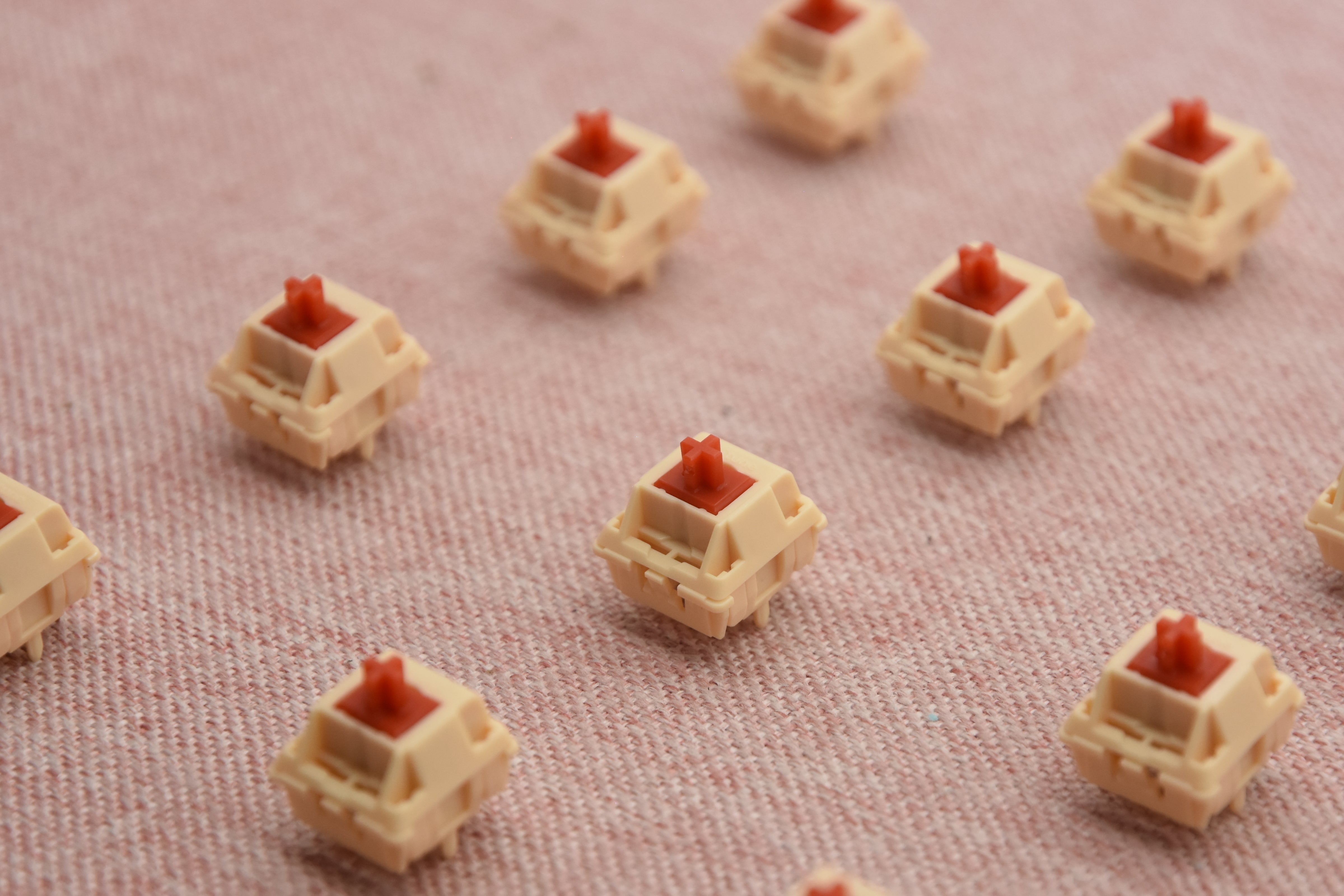

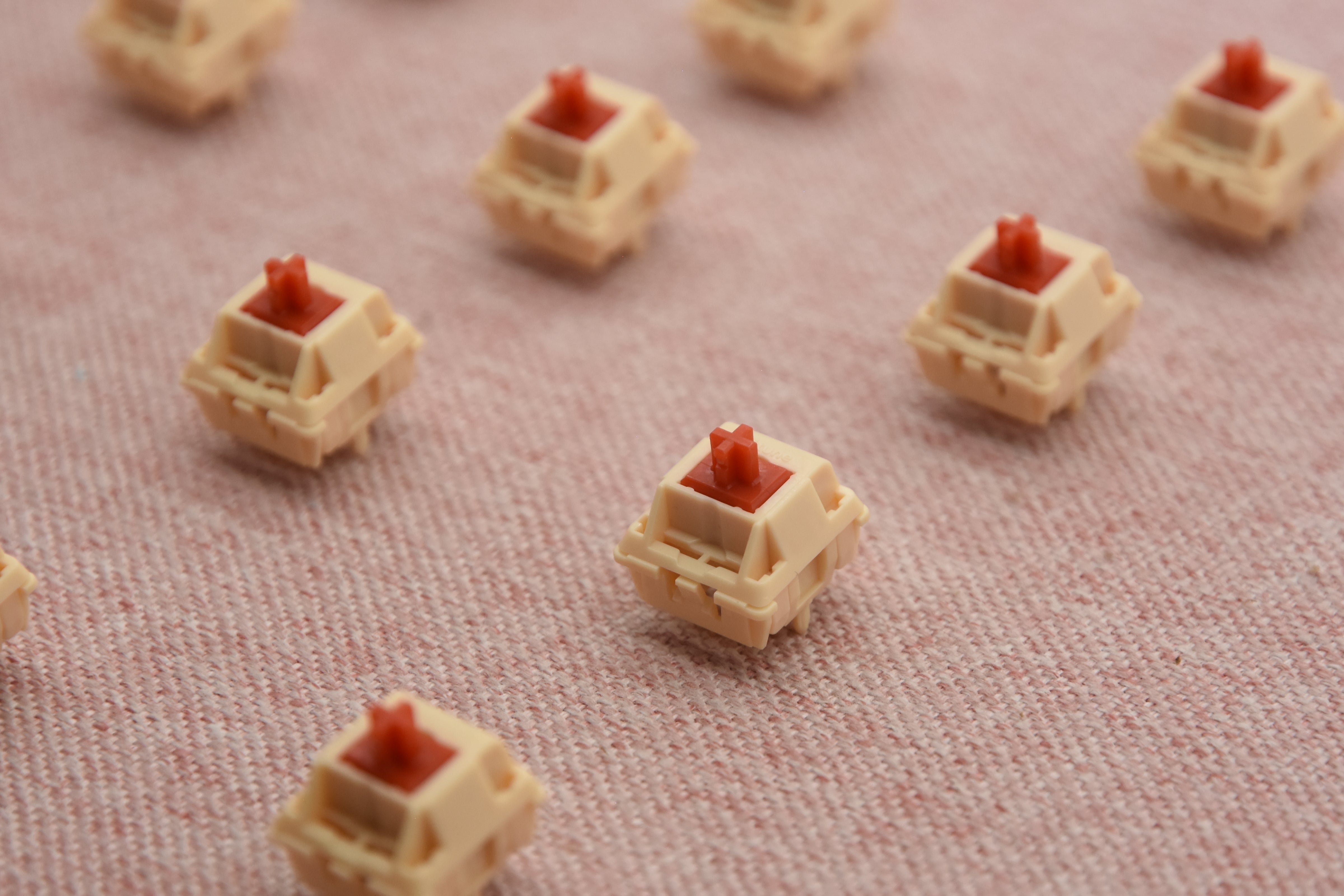

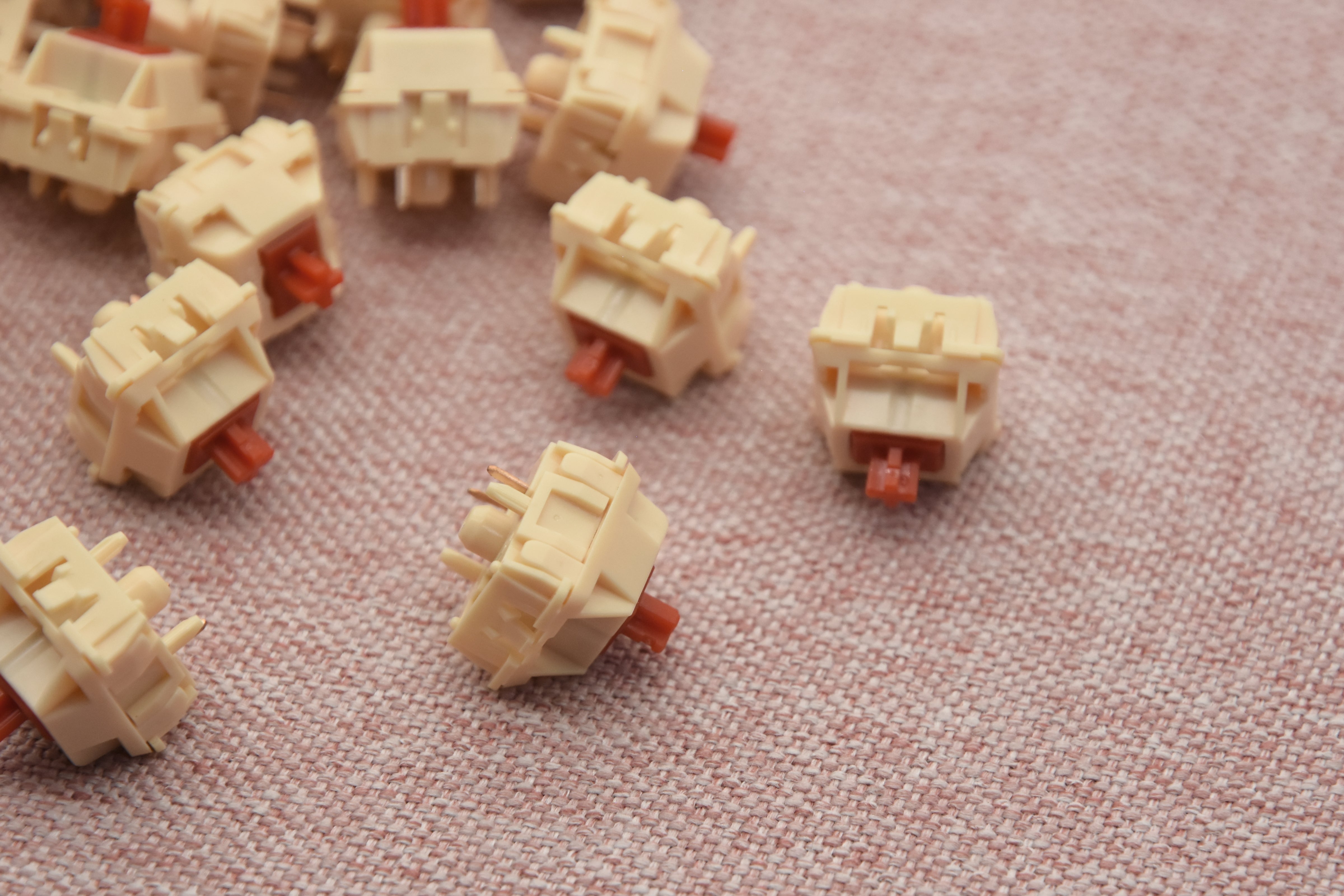

xWingTree BM11 Tactile Switch
The BM11 tactile switch, also known as the High-Tune tactile switch, features a super short travel distance, a P-shaped tactile bump, and a thocky sound profile. Compared to BM10 tactile switch, the BM11 has a bottom housing made of PC plus fiberglass rather than PA66. This change in material, and its even shorter travel distance, brings up the overall volume and pitch when the stem hits the bottom housing.
If this helps differentiate between BM11 and BM10, BM10 is the one that sounds louder, slightly clackier, and bottoms out faster.
Specs:
1 quantity = 10 switches
Switch Type: Tactile
Designer: Wingtree
Manufacturer: WingTree

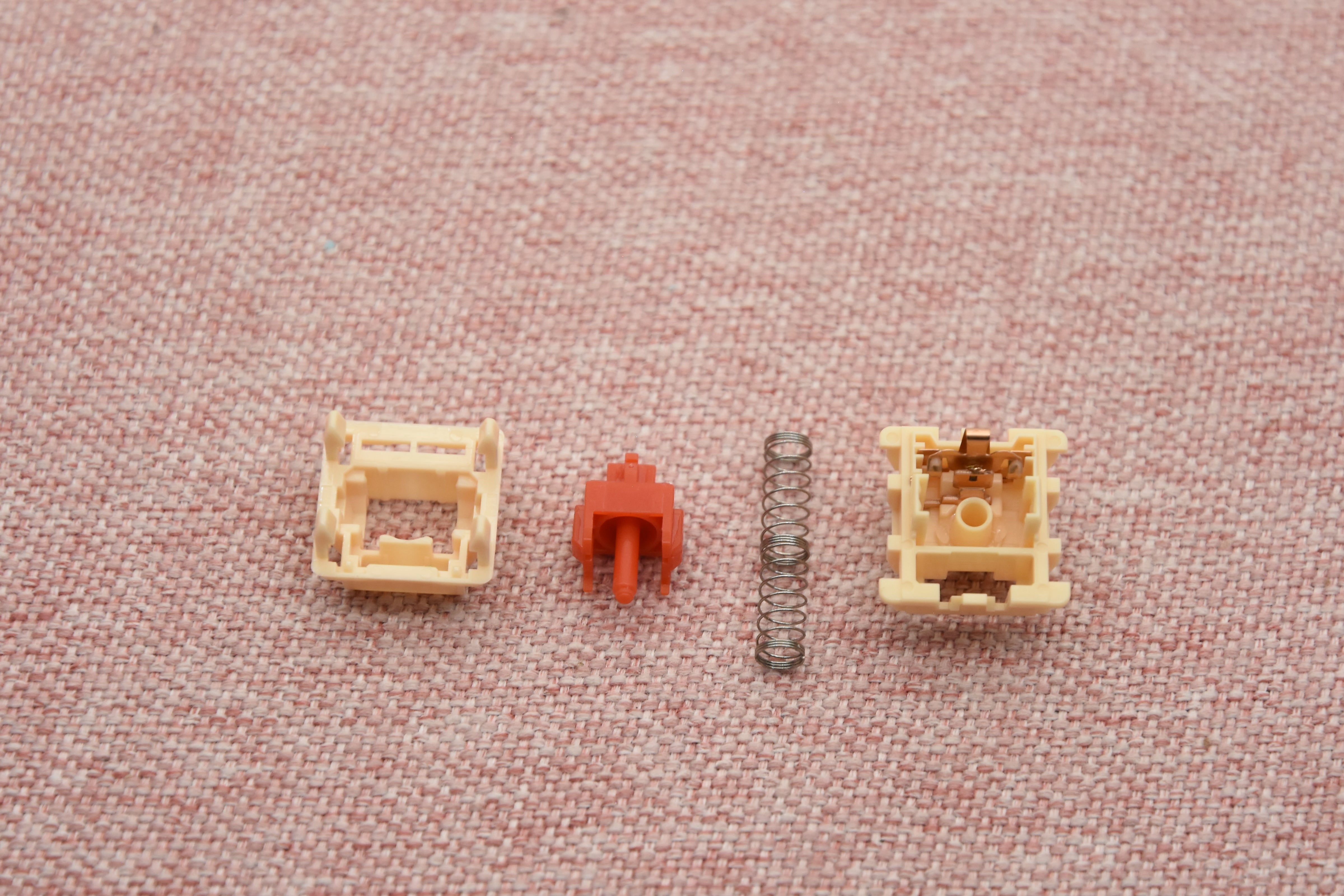

Stem material: Modified UPE
Top Housing: PC
Bottom Housing: PC + Fiberglass
Operating Force: 50±2g
Bottom-out Force: 56±2g
Pre-travel: 2.2mm
Total Travel: 2.9±0.2mm
Factory Lubed: Yes! Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed.
