Weikav NUT65 Mechanical Keyboard Barebone Kit

Highlight of NUT65

1. Pure CNC carving craftsmanship with 220 mesh anodizing/electrophoresis for an ultra-premium feel! A total of six colors for you to choose from. (Anodized Black, Anodized Silver, Anodized Red, E-coat White, E-coat Milky White, E-coat Pink

2. Three-mode connection supporting multiple devices and scenes! Can pair up to 5 devices, with quick switching to connect 3 Bluetooth devices. Optimize the wireless connection module, making it more stable and smooth, and allowing for seamless multitasking.

• FN+Q/W/E to switch Bluetooth mode
• FN+R to switch to 2.4G mode
• FN+T to switch to wired mode

3. 8-pin magnetic contact pins for easier disassembly and assembly! In order to increase the anti-oxidation life of the pin and the connection stability, the touch pin adopts an 8-pin transmission, which improves the customized keyboard experience in many aspects.

4. Quick-release structure for effortless maintenance and upgrades! Equipped with a new ball model to optimize the pulling force, achieve better disassembly strength, and achieve a silky, quick disassembly effect. Anti-collision silicone is added to the four corners of the keyboard to achieve soft contact between the top and bottom cases.

5. Self-developed web interface + VIA dual-driver, allowing personalized customization with ease!

6. Dual gasket mount with a plate gasket and PCB gasket — delivering an outstanding tactile experience! Two different structures can be freely modified and switched, allowing you to deeply experience the fun of customization.

7. And the most impressive features include:

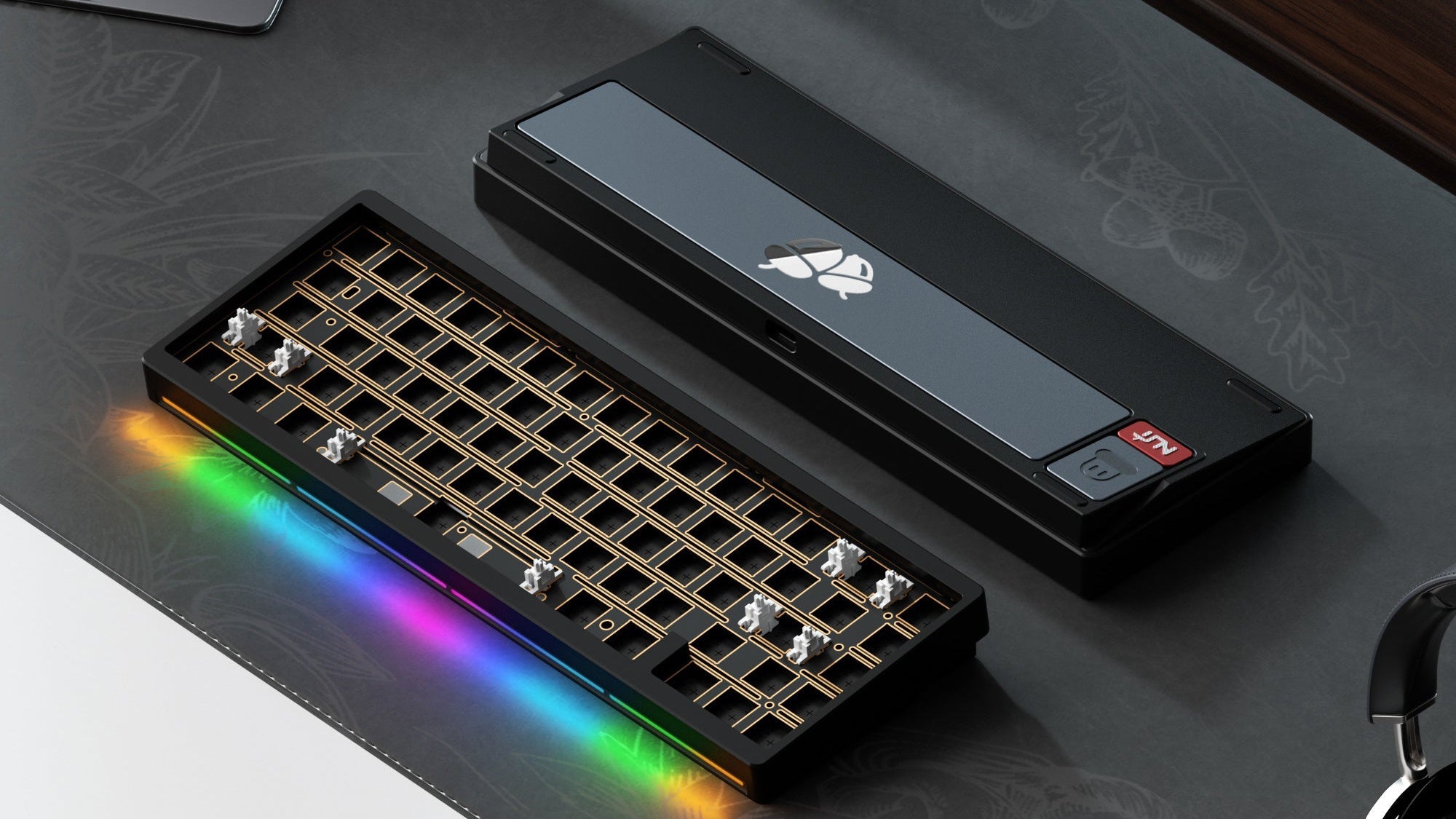

Four-segment RGB light strip at the front, built-in microphone, with lighting that "dances" dynamically to music!

Four dazzling lighting effects:
Flowing light from left to right
Flowing light from right to left
Central to both sides' diffusion
Both sides are converging on the center

8. Detailed upgrade: The spacebar is equipped with five LEDs, making the lighting more vibrant and colorful!

9. The back of Nut65 continues the Weikav multi-process design concept, with storage compartments, decorative parts, anode back plate, metal patches and other designs, and a variety of processes create a textured back design.

10. 6000mAh large capacity battery

Specification

• Layout: ANSI layout
• Hotswappable
• Mount: PCB Gasket Mount Structure
• Case material: CNC Aluminum 6063
• Processing: High Quality 220 mesh Anodization & e-Coat Finishing
• Quick Assembly System: Ball-catched
• Anodized aluminum weight with dongle compartment
• Sound-activated RGB lighting effect
• Flex Cut 1.2mm Hot swappable PCB, South Facing RGB
• Horizontal Flex Cut FR4 Plate
• Padding: 4 Layers
• Connectivity: Wired / 2.4G / Bluetooth
• Battery: 6000 mAh
• QMK/VIA compatible
• Does not include switches or keycaps
• Dimensions: 314*113*19.5 mm
• Weight: 1.12kg
• Including: Keyboard*1, Keycap&Switch puller*1, USB cable, Manual
• Manufacturer: Weikav
• Web Driver
