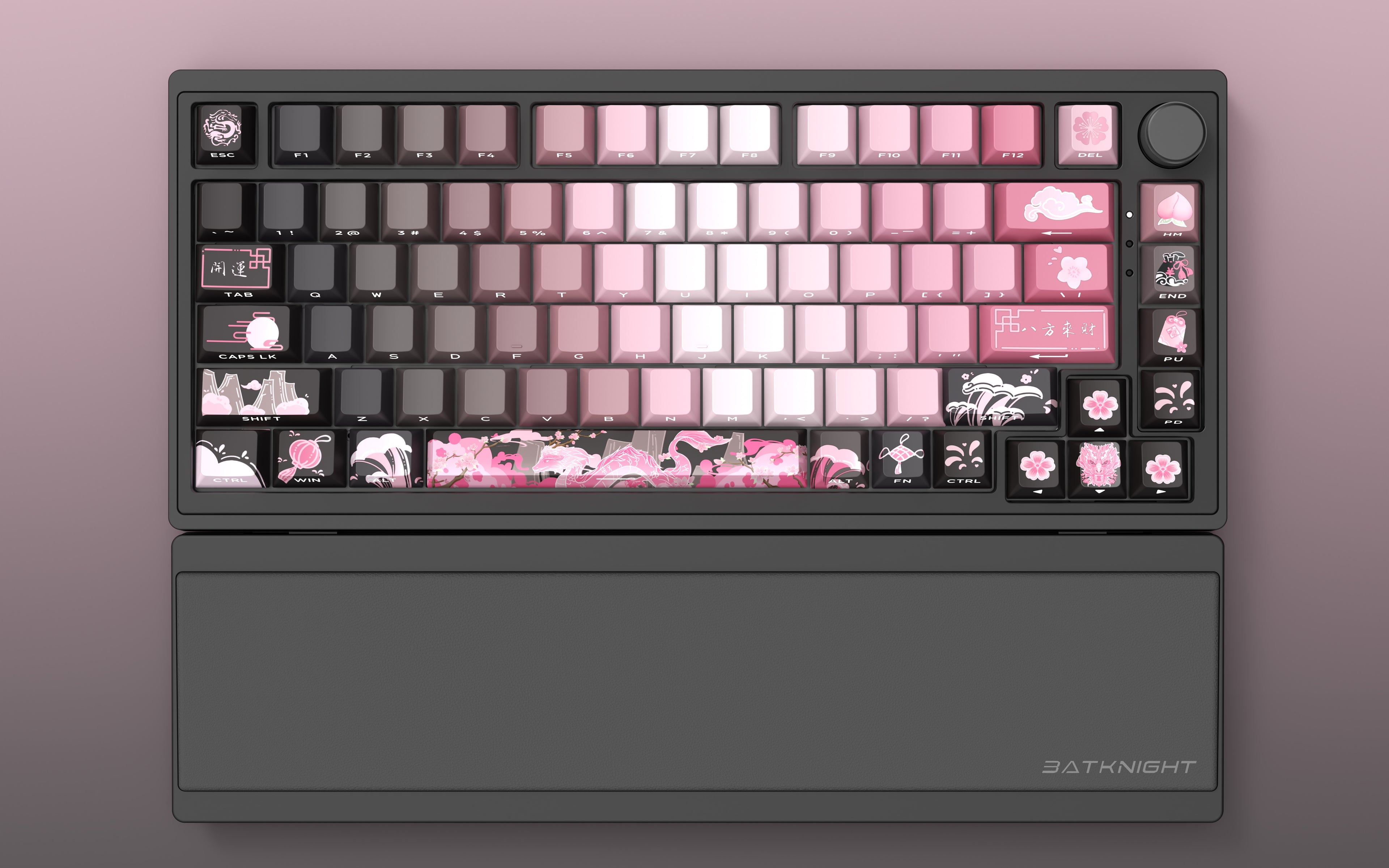

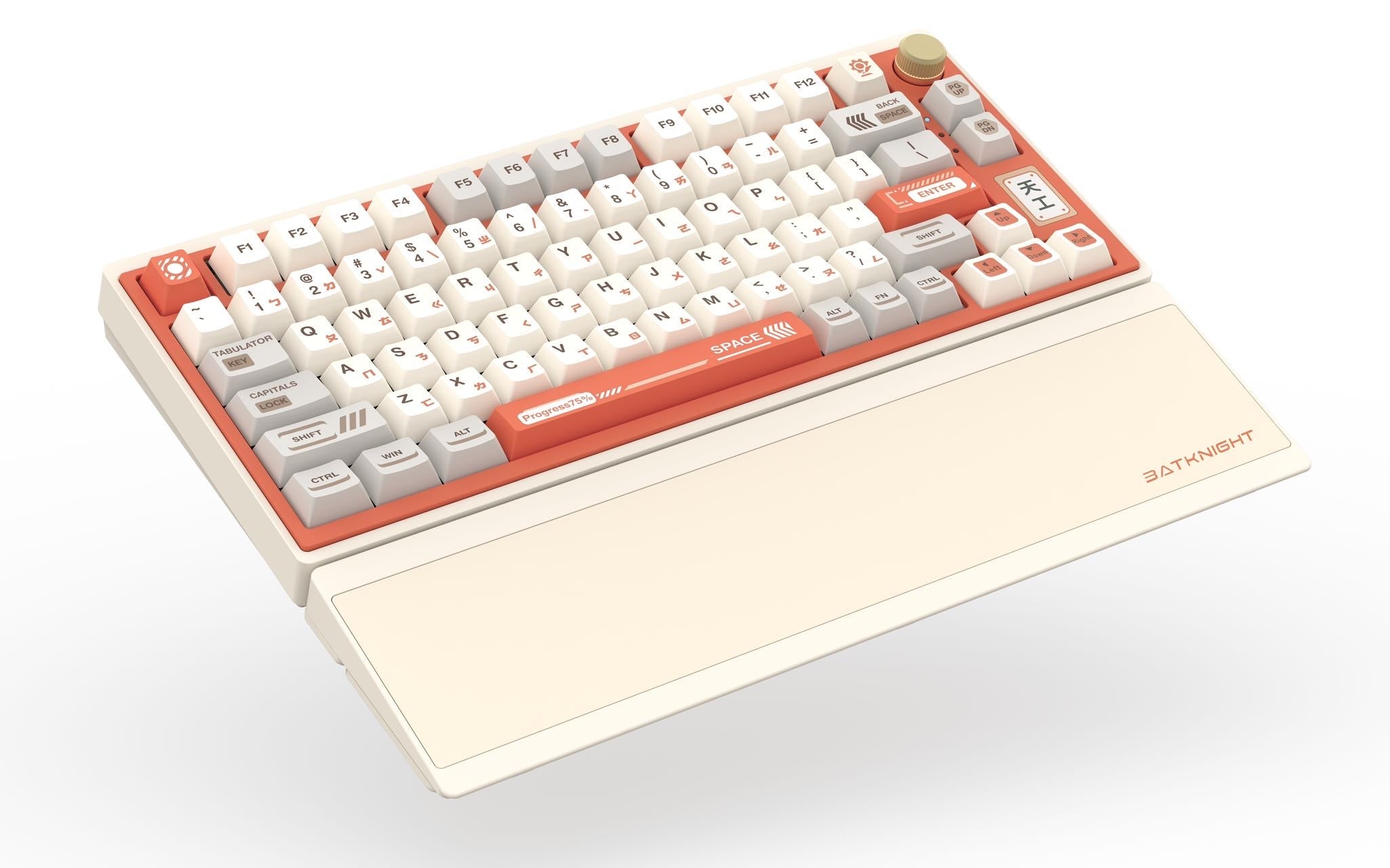

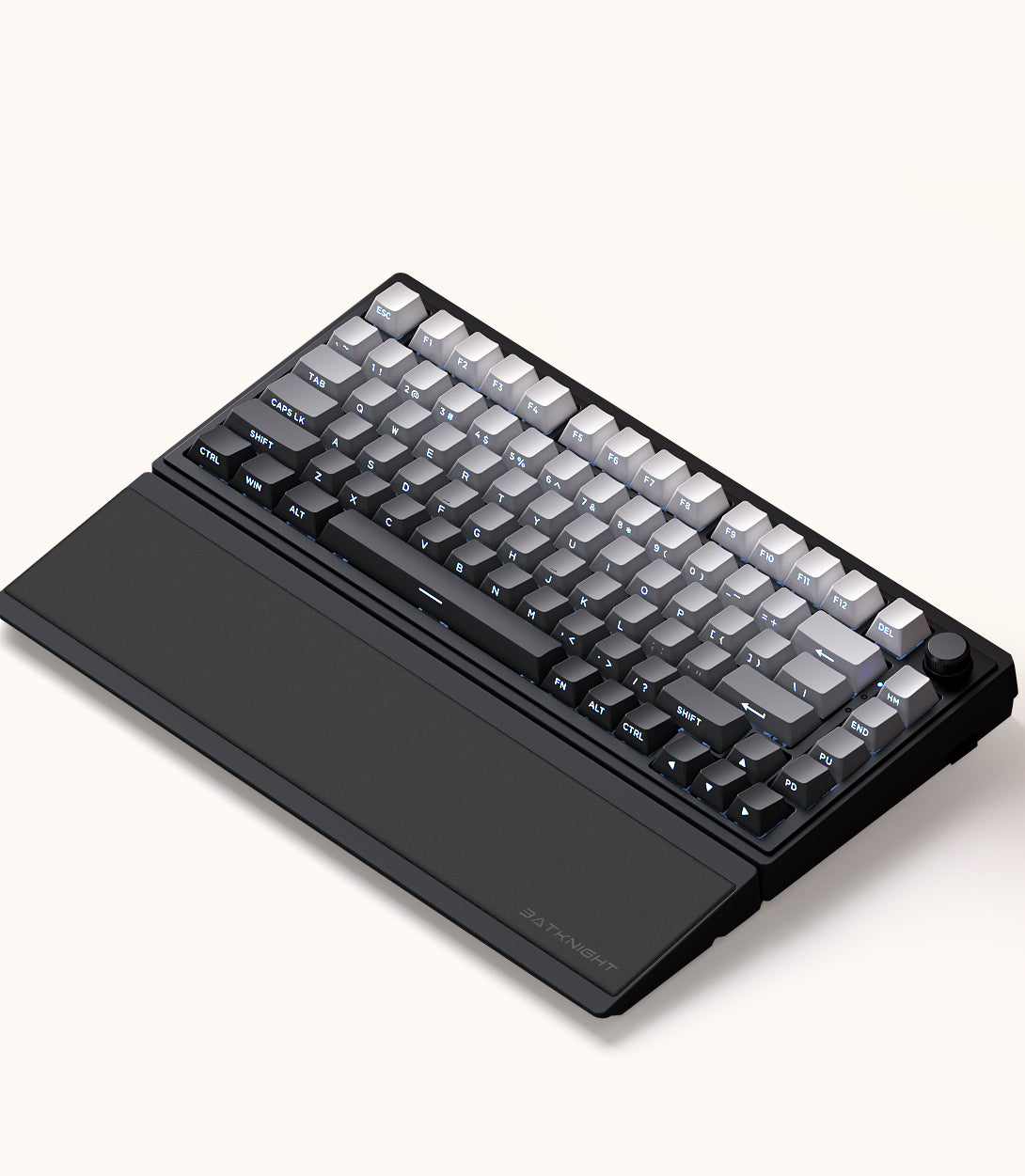

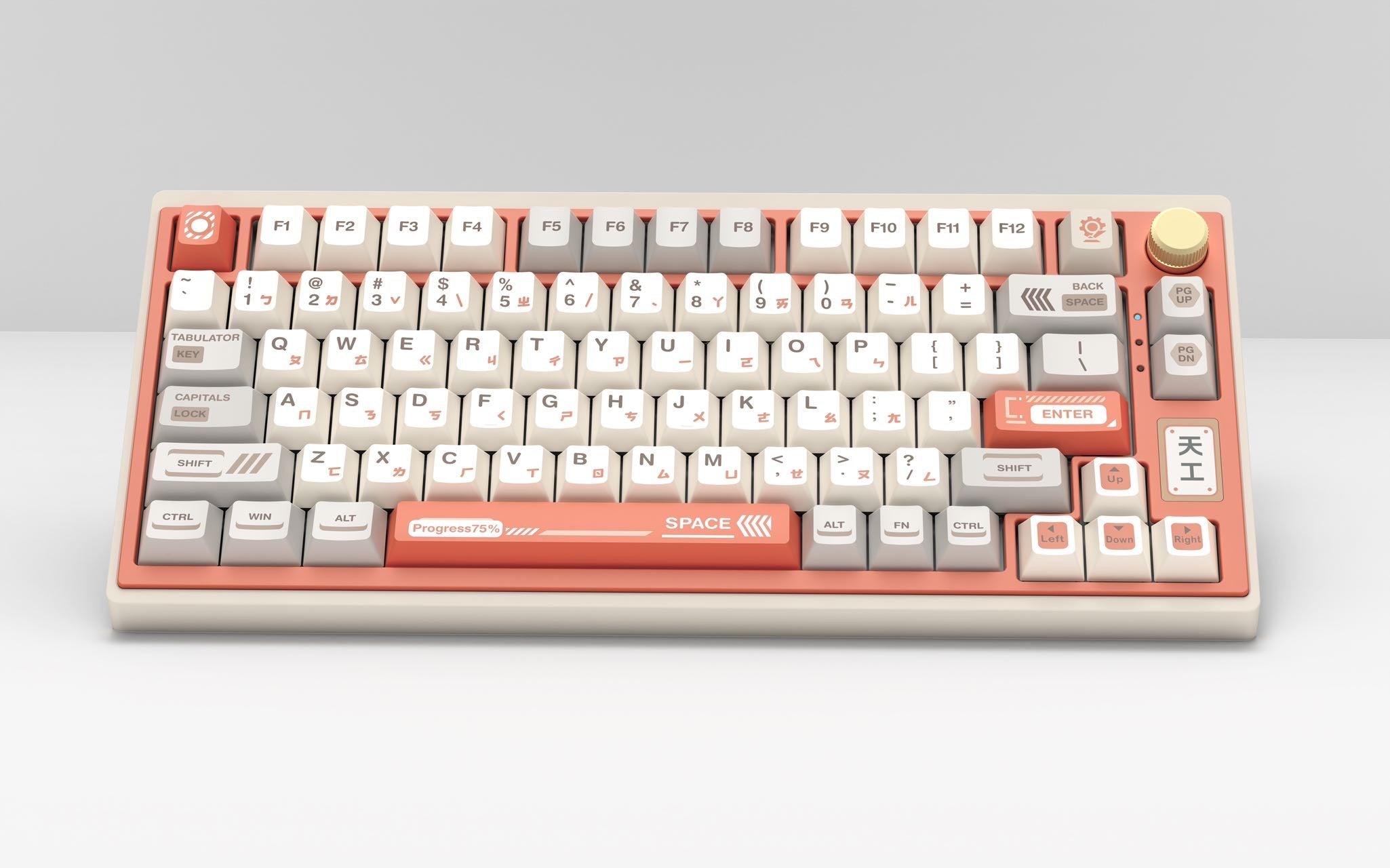

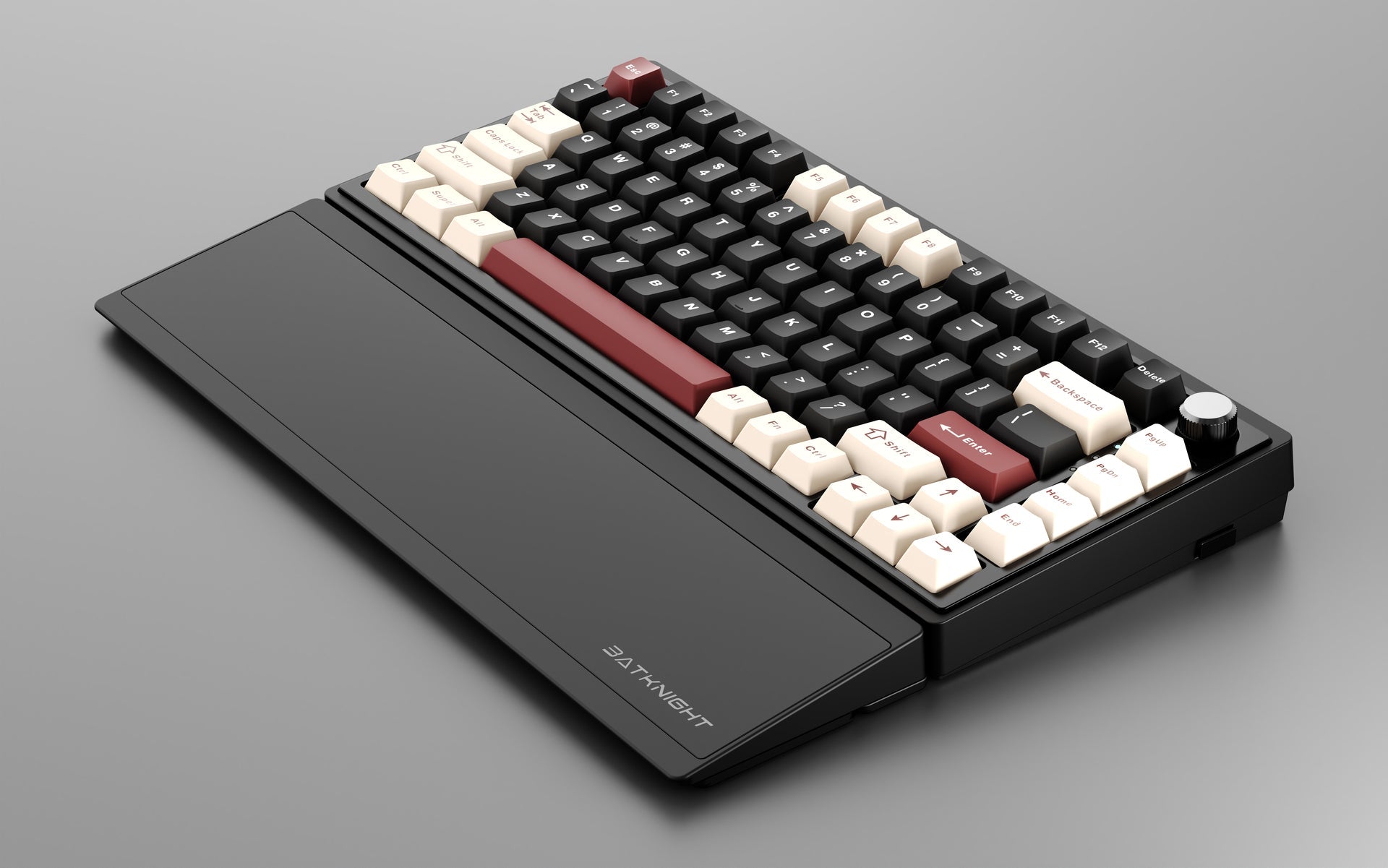

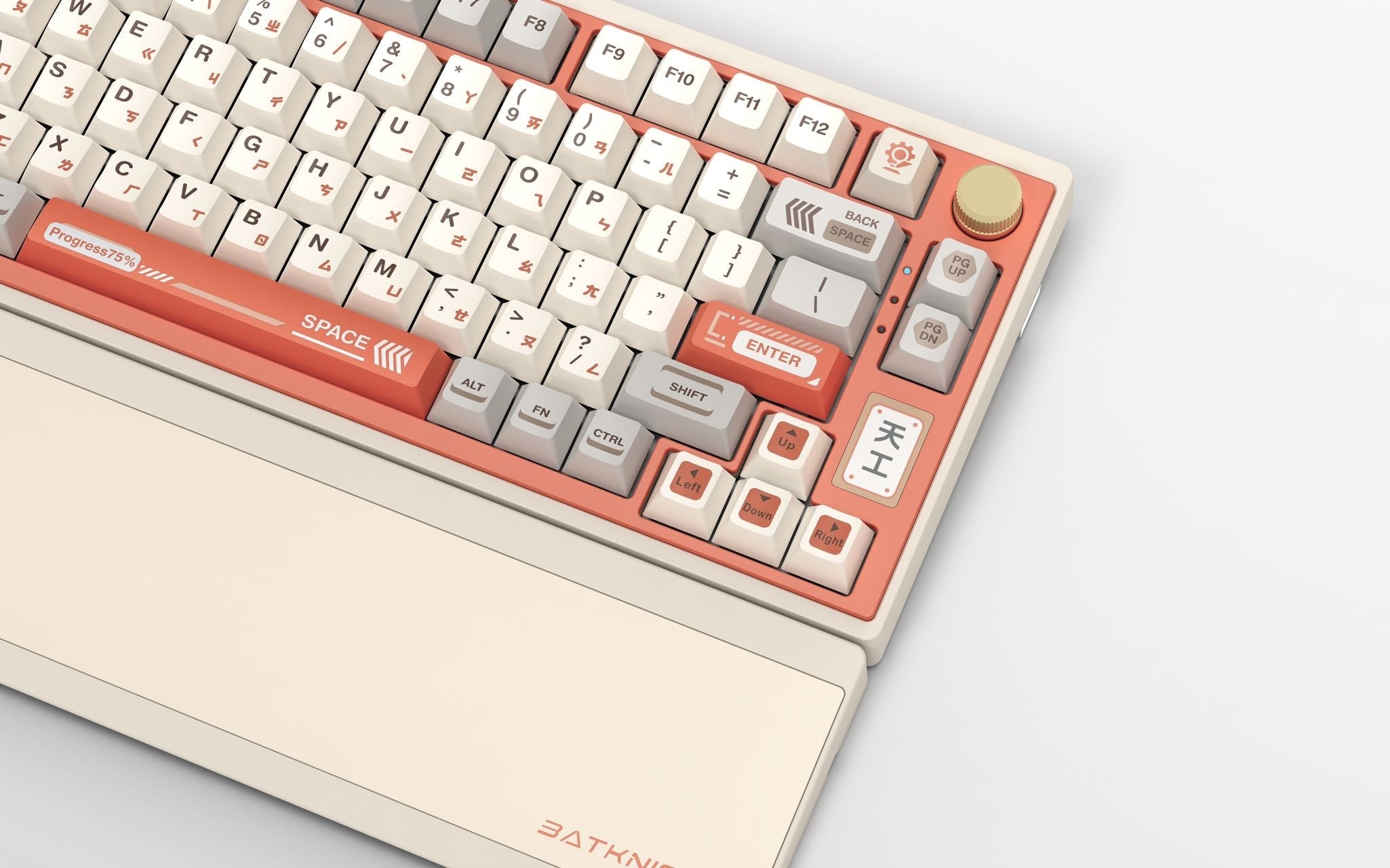

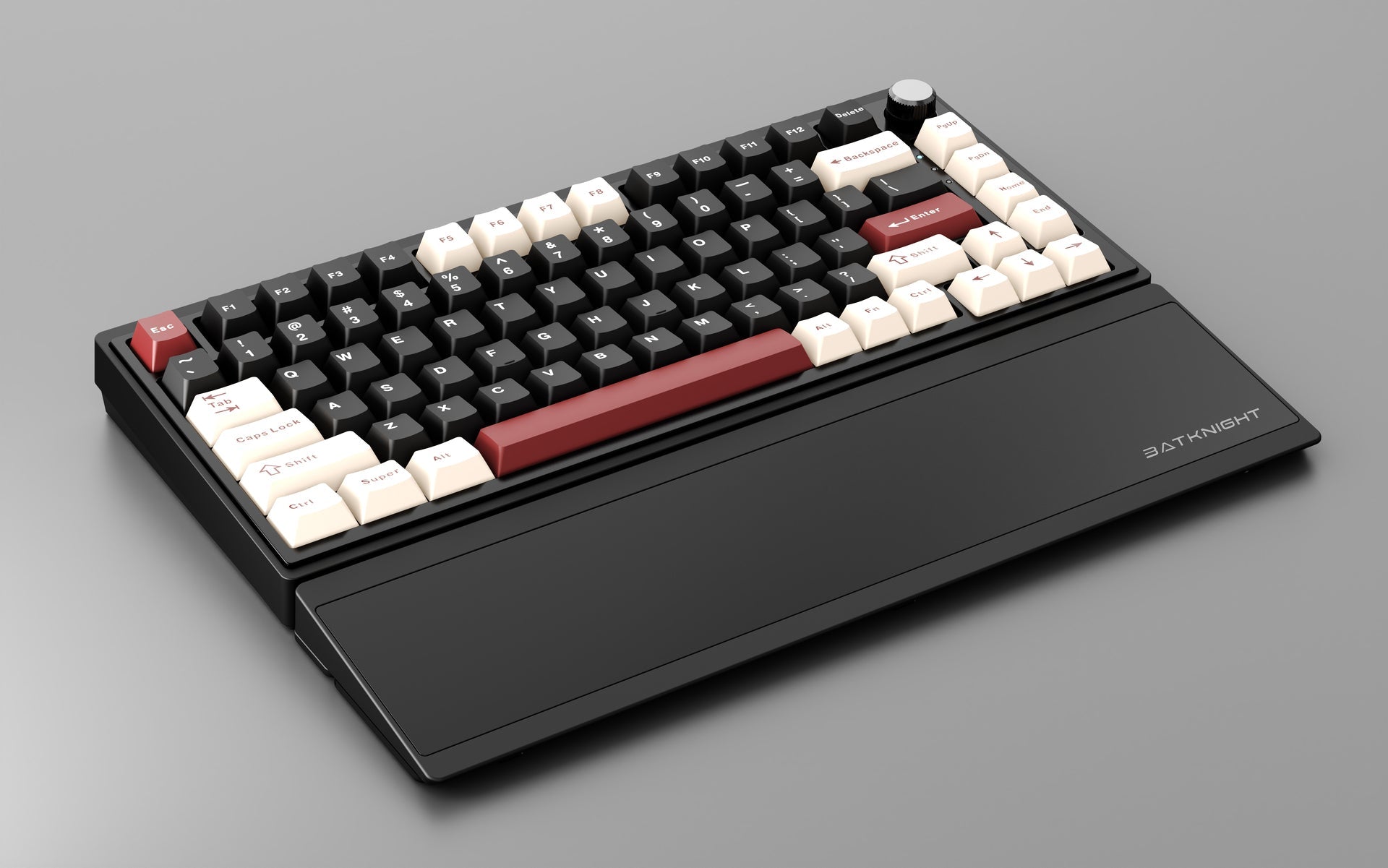

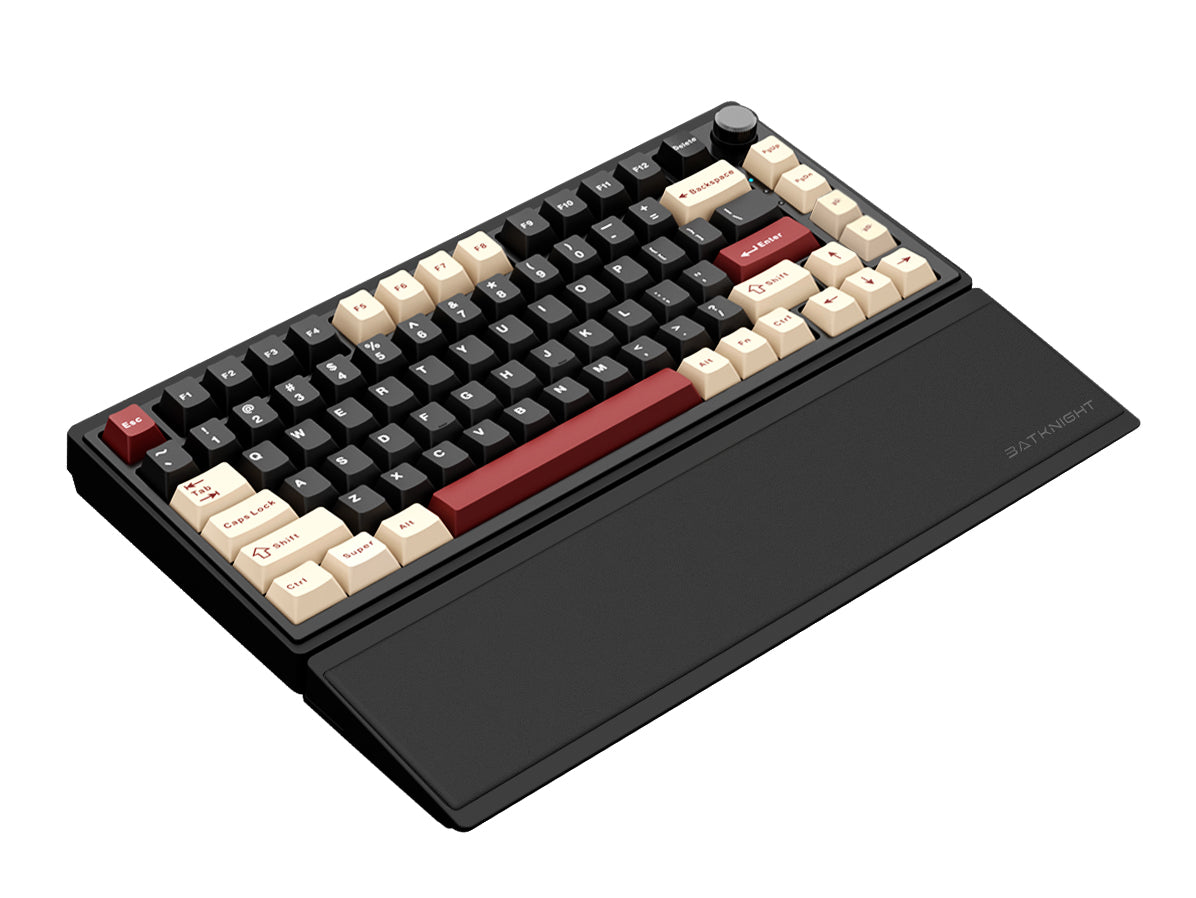

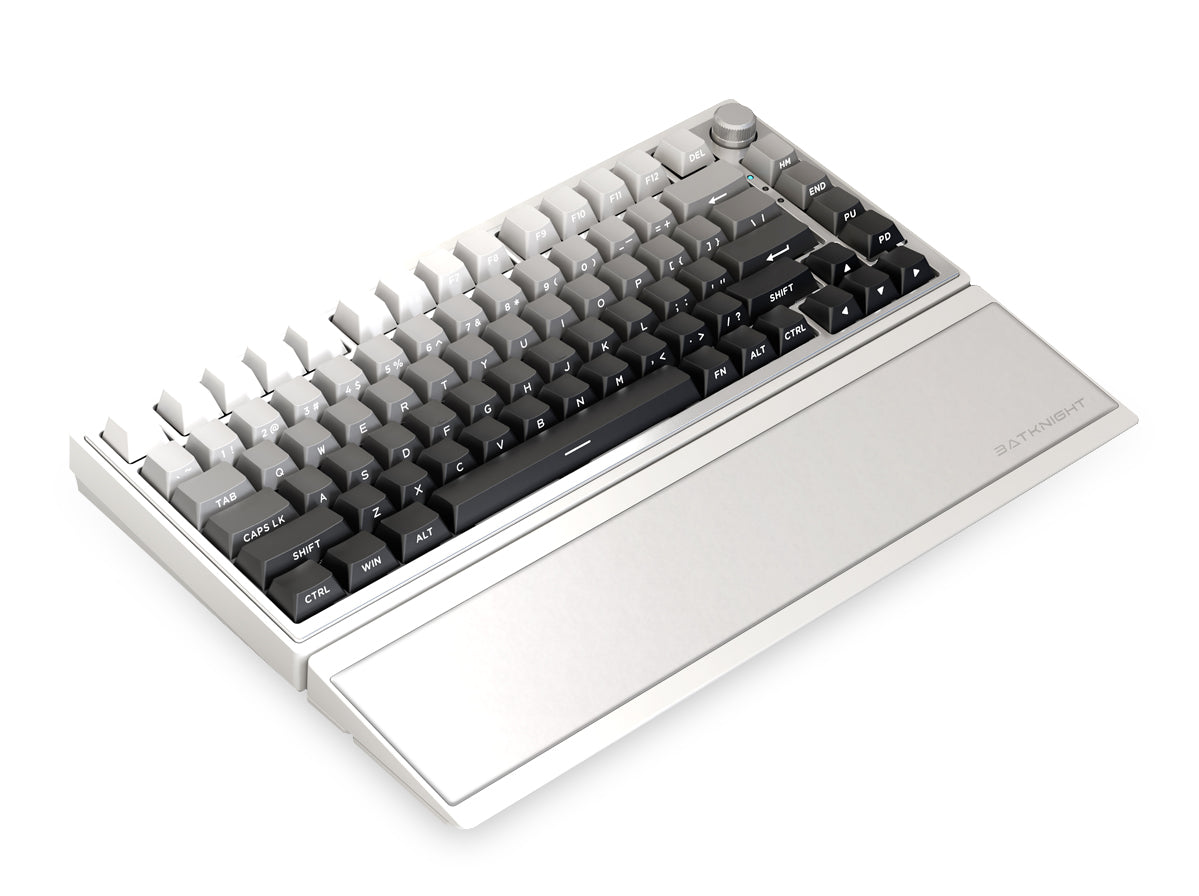

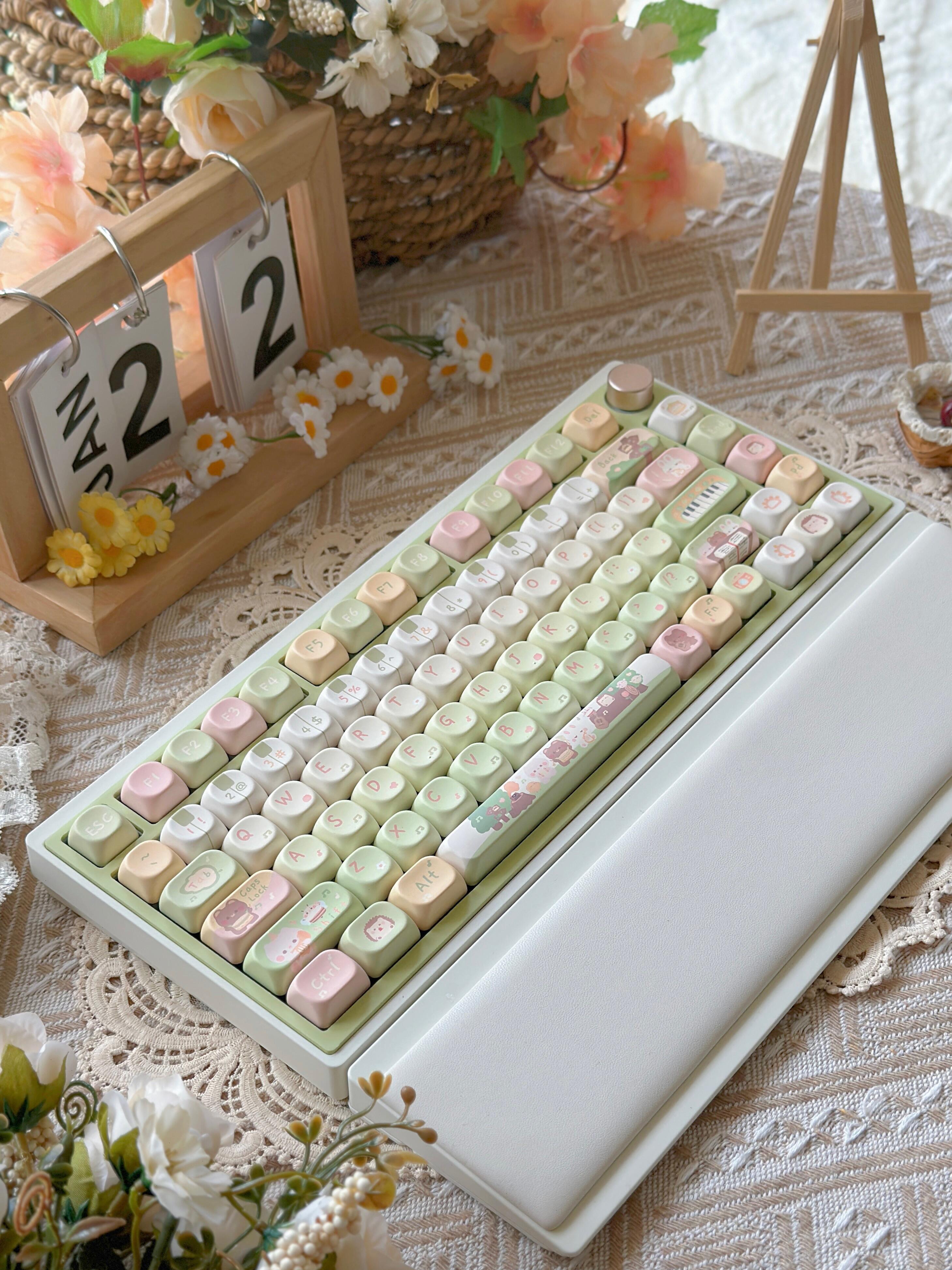

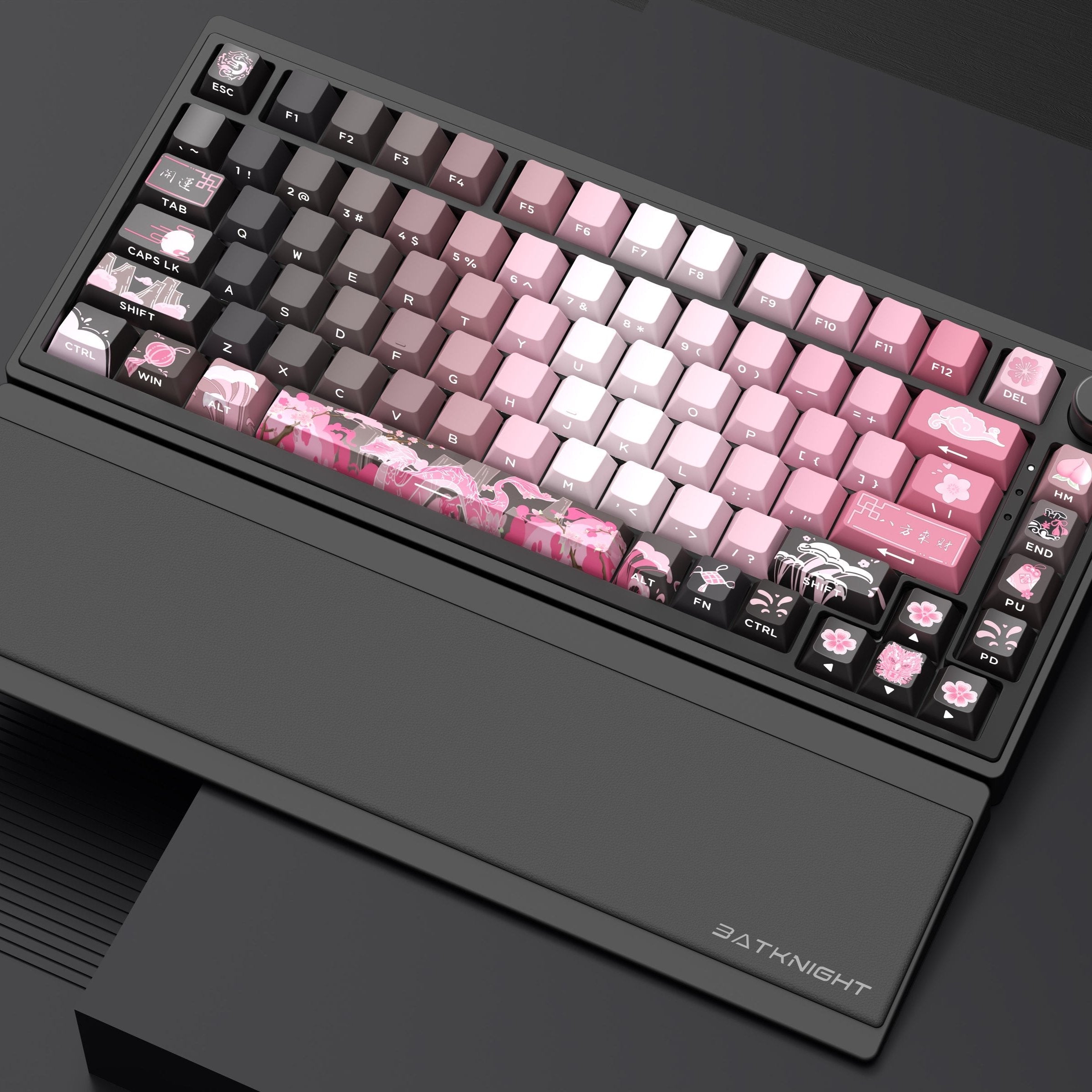

BK75 75% Pre-Built Mechanical Keyboard

Description

Get ready for the ultimate gaming experience with our BK75-WIRELESS mechanical gaming keyboard! With 82 gasket-mounted keys, hot-swappable switches, and a wrist rest with a dust cover and display stand, you'll have a customizable and comfortable setup. Plus, our keyboard automatically turns on or off with the magnetically removable metal cover. Choose from Bluetooth, 2.4G, or wired connectivity and enjoy low-latency response and customizable POM switches. Elevate your gameplay with the two-stage system switch and footstand.

Feature

• 82 keys gasket mount design, hot-swappable switches gaming keyboard

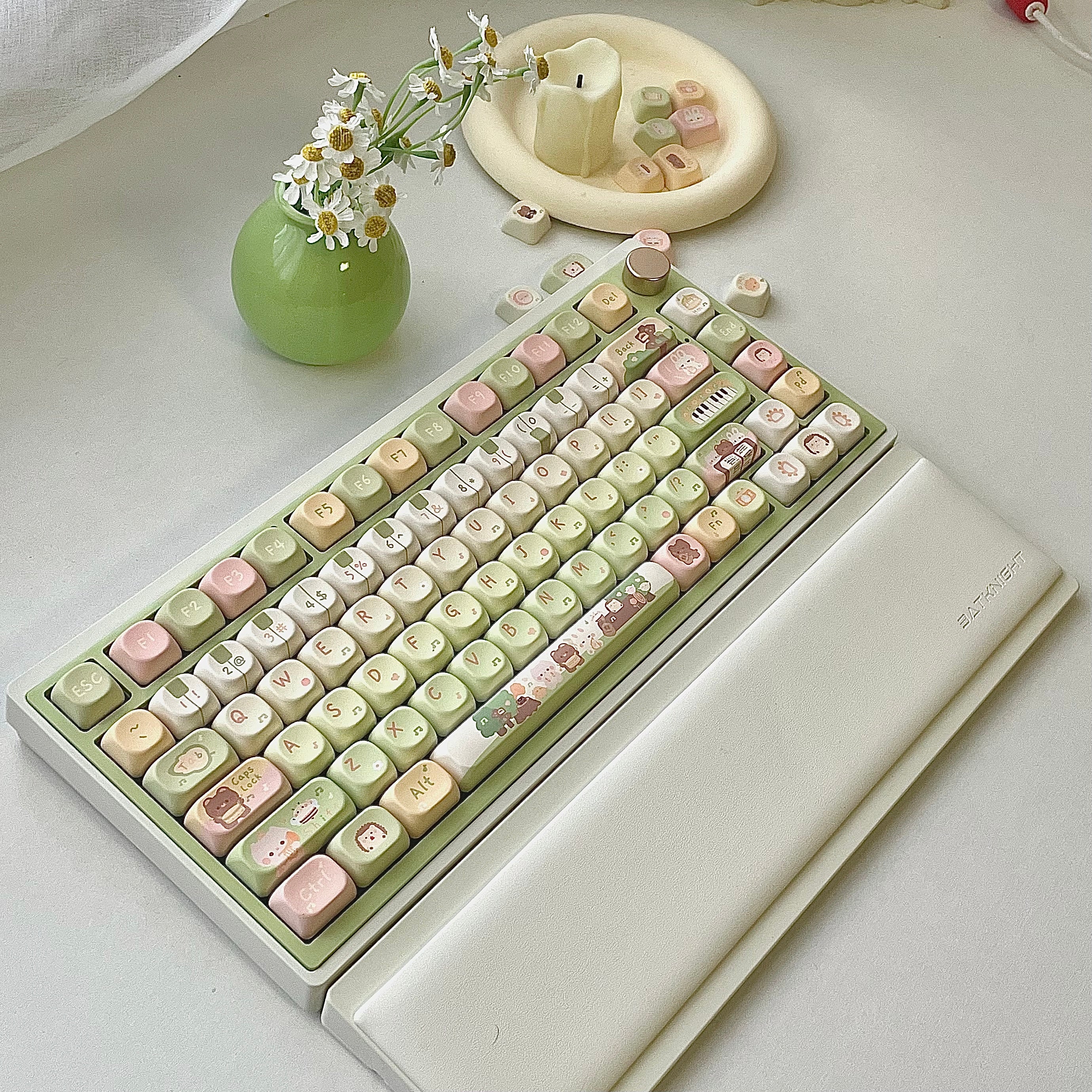

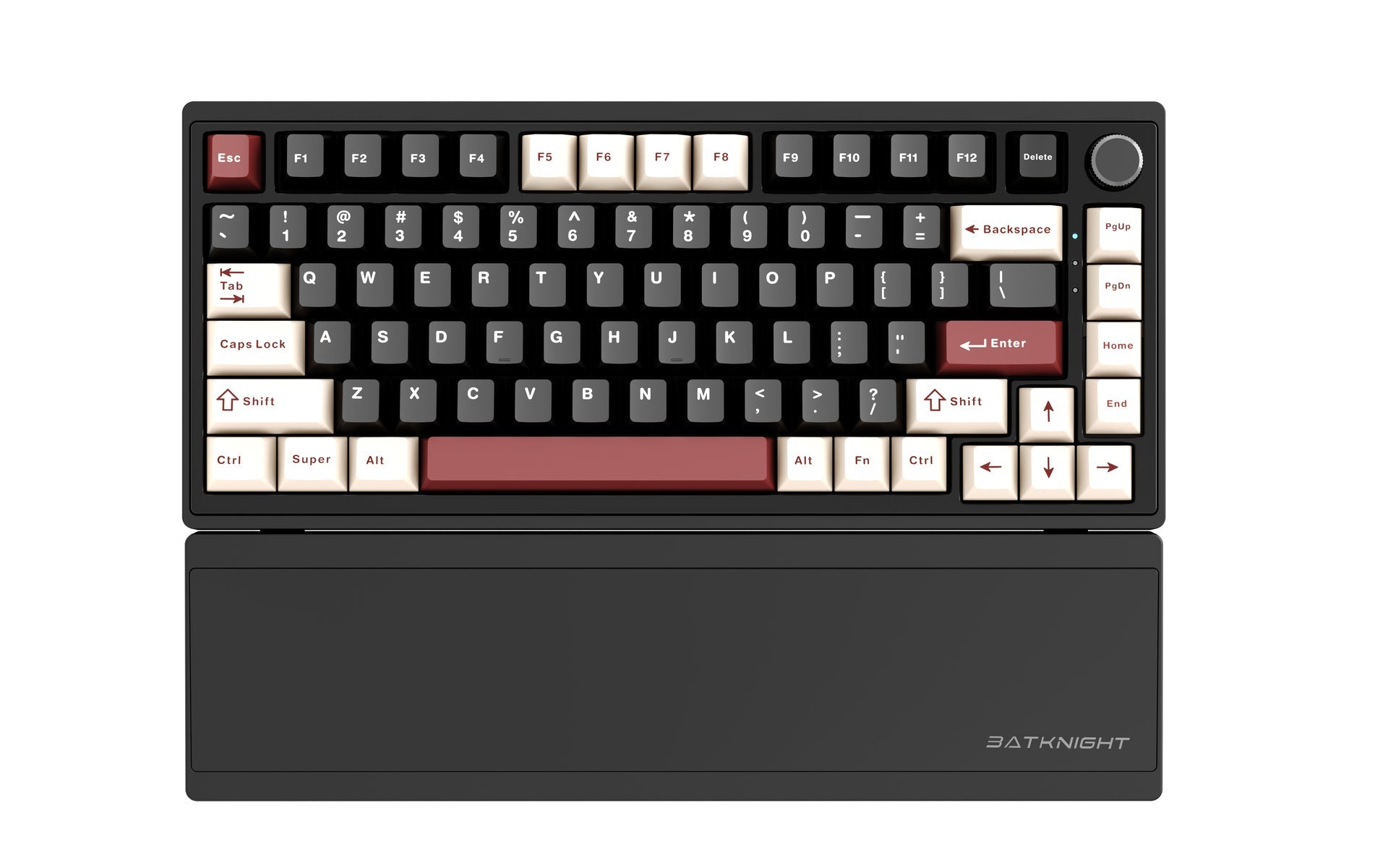

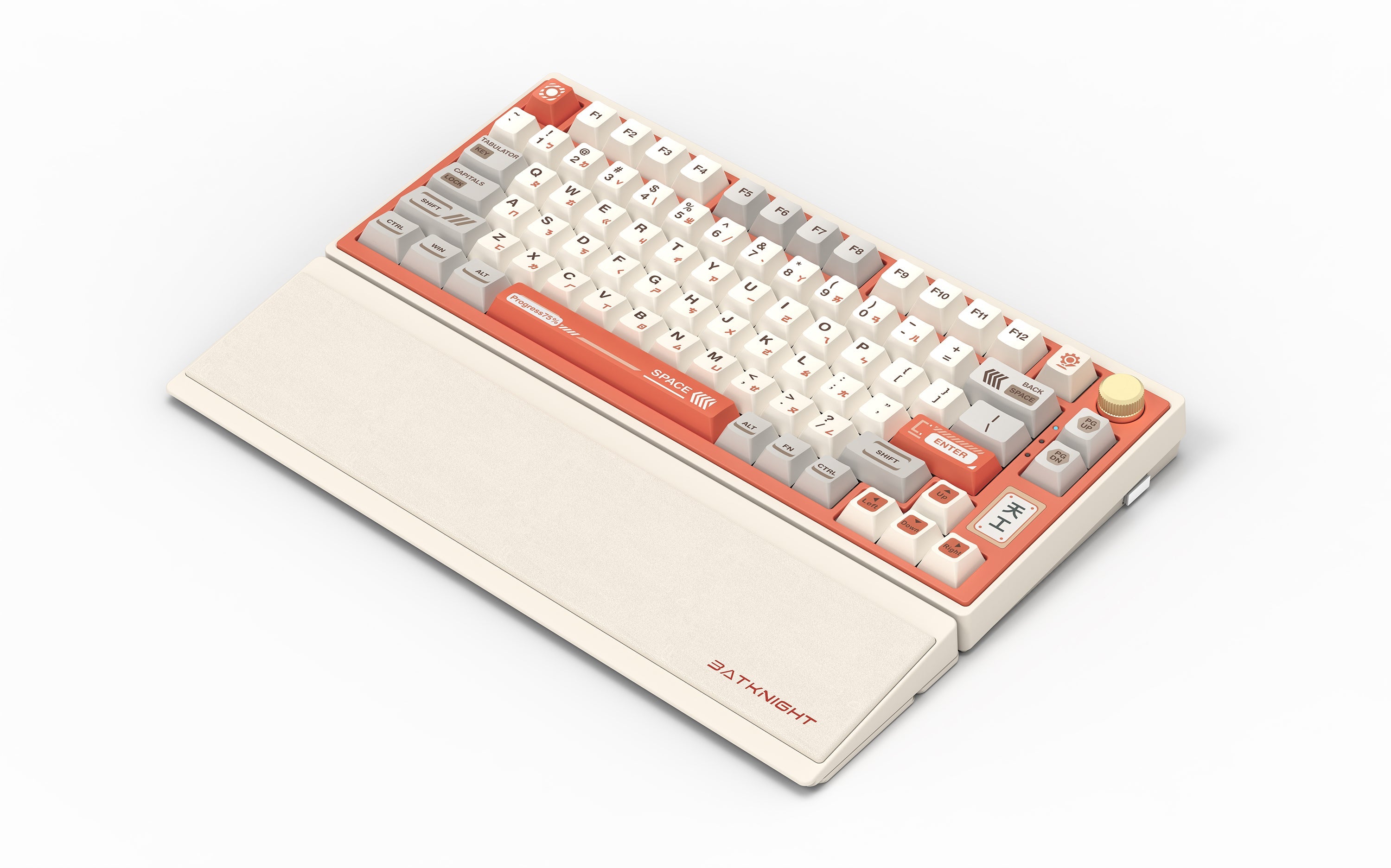

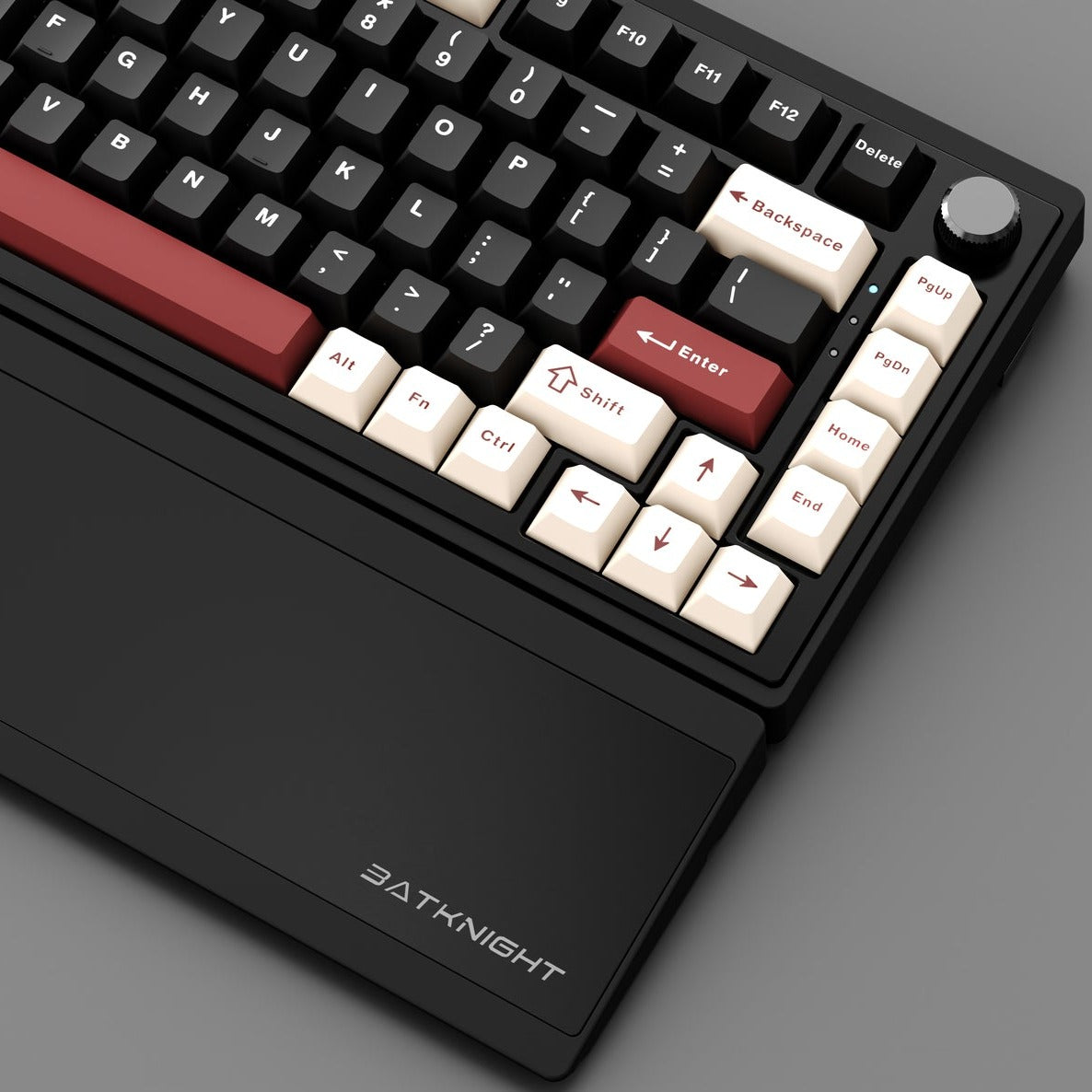

• Wrist rest, dust cover, keyboard display stand 3-in-1
• Use the Hall switch/sensor, the keyboard will automatically turn on or off when the Wrist rest is covered or spread (Only in BT and 2.4G mode)
• Removable magnetic keyboard top metal cover
• Bluetooth+ 2.4G+ Wired, Supports up to 3 Bluetooth Devices, Low-latency Fast Response
• Full-key with Rogers Poron Switch Pad
• Customized POM switches, office or gaming are both suitable

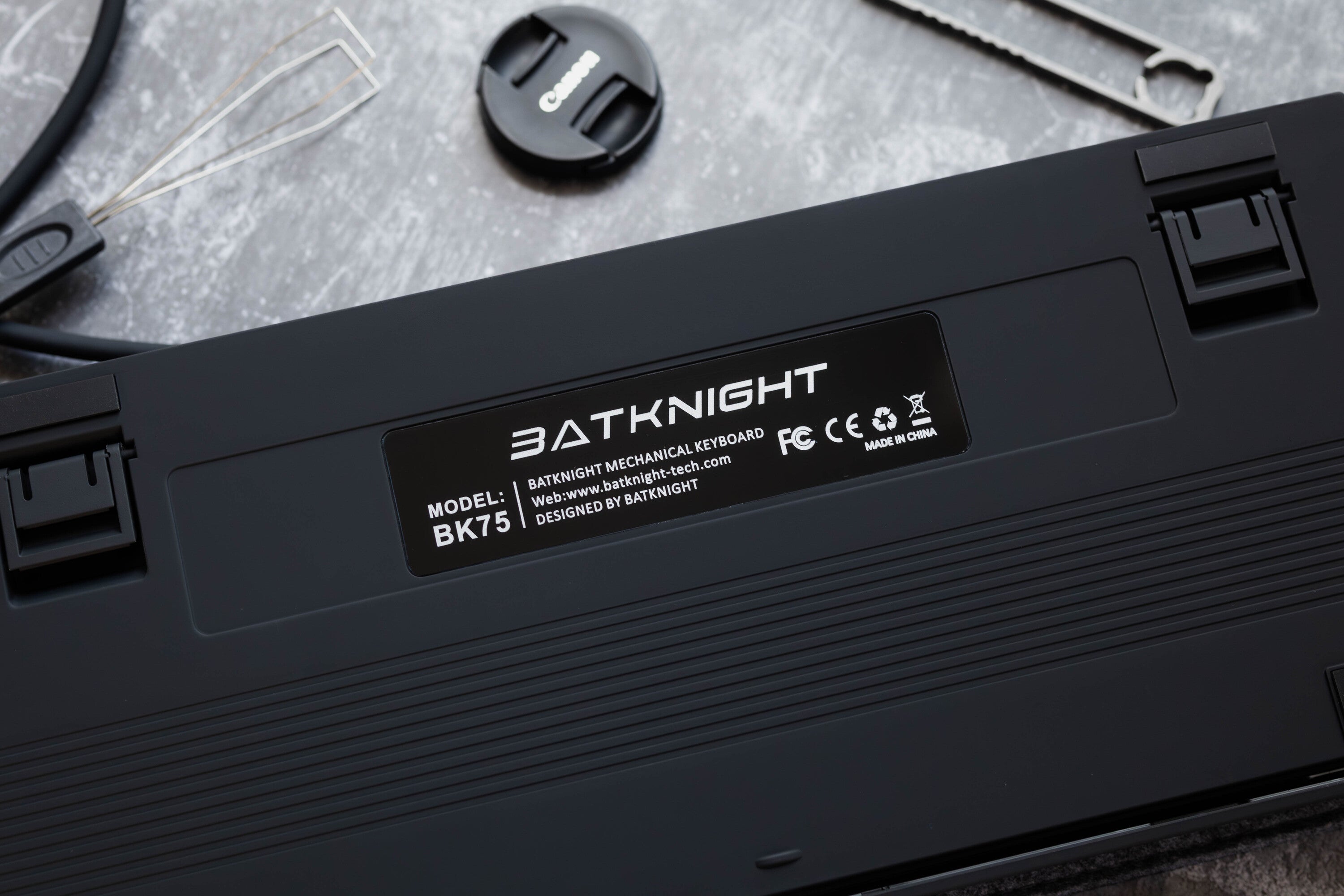

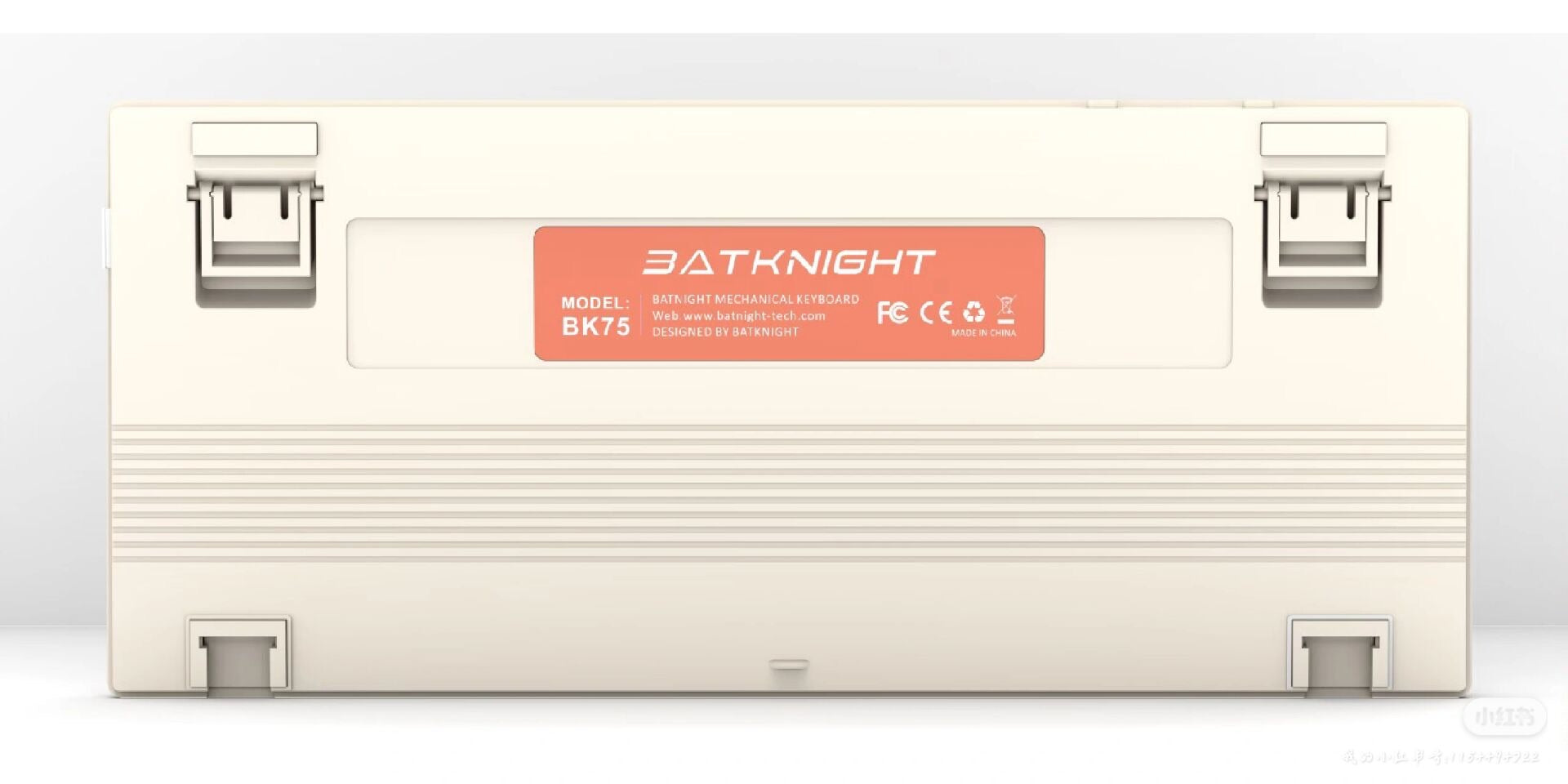

• Two-stage system switch and footstand

Note

The extra keycaps in smoke white and ink black keyboard kit have been removed.

The color of the switch stem has changed from blue to white.

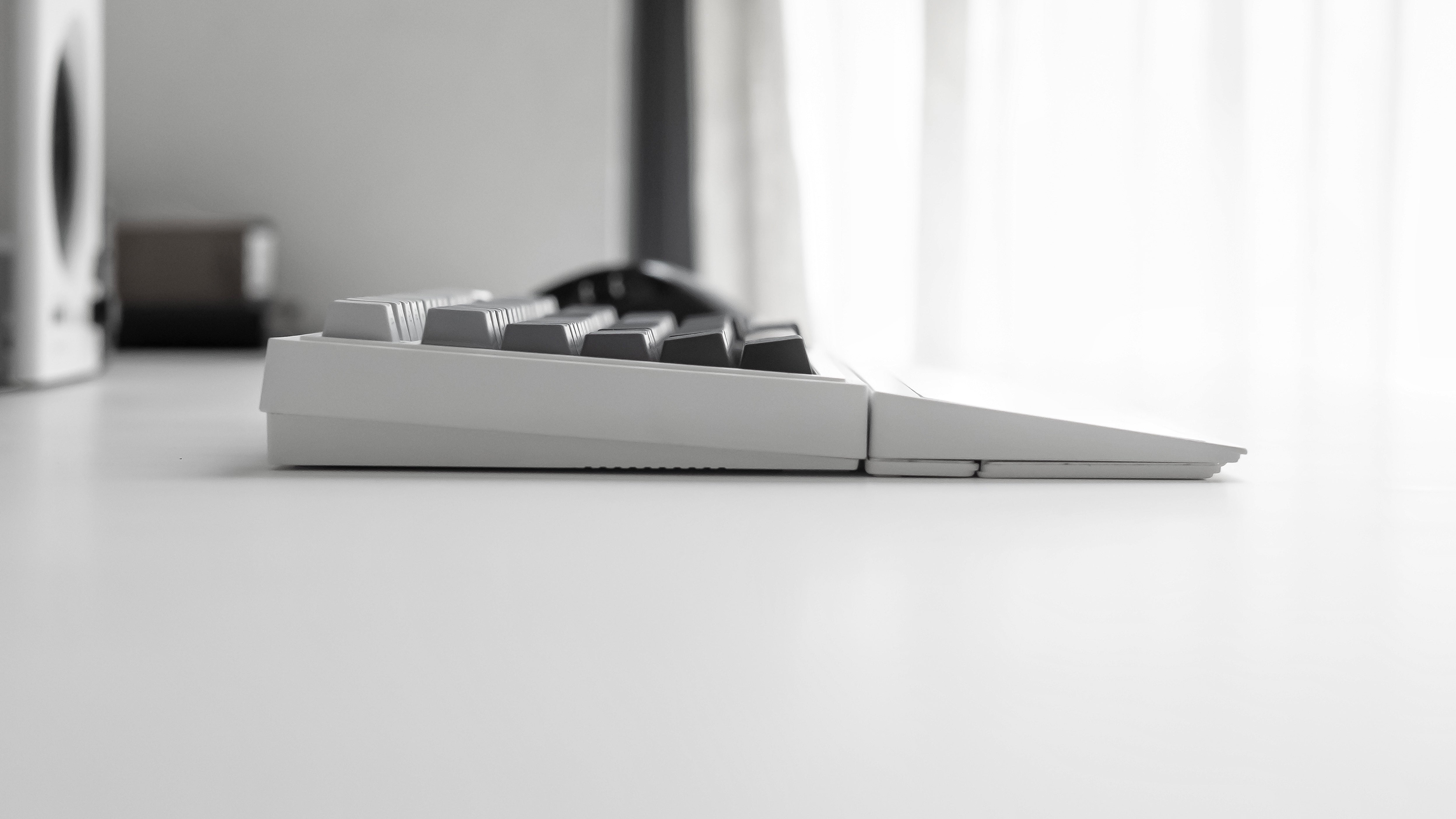

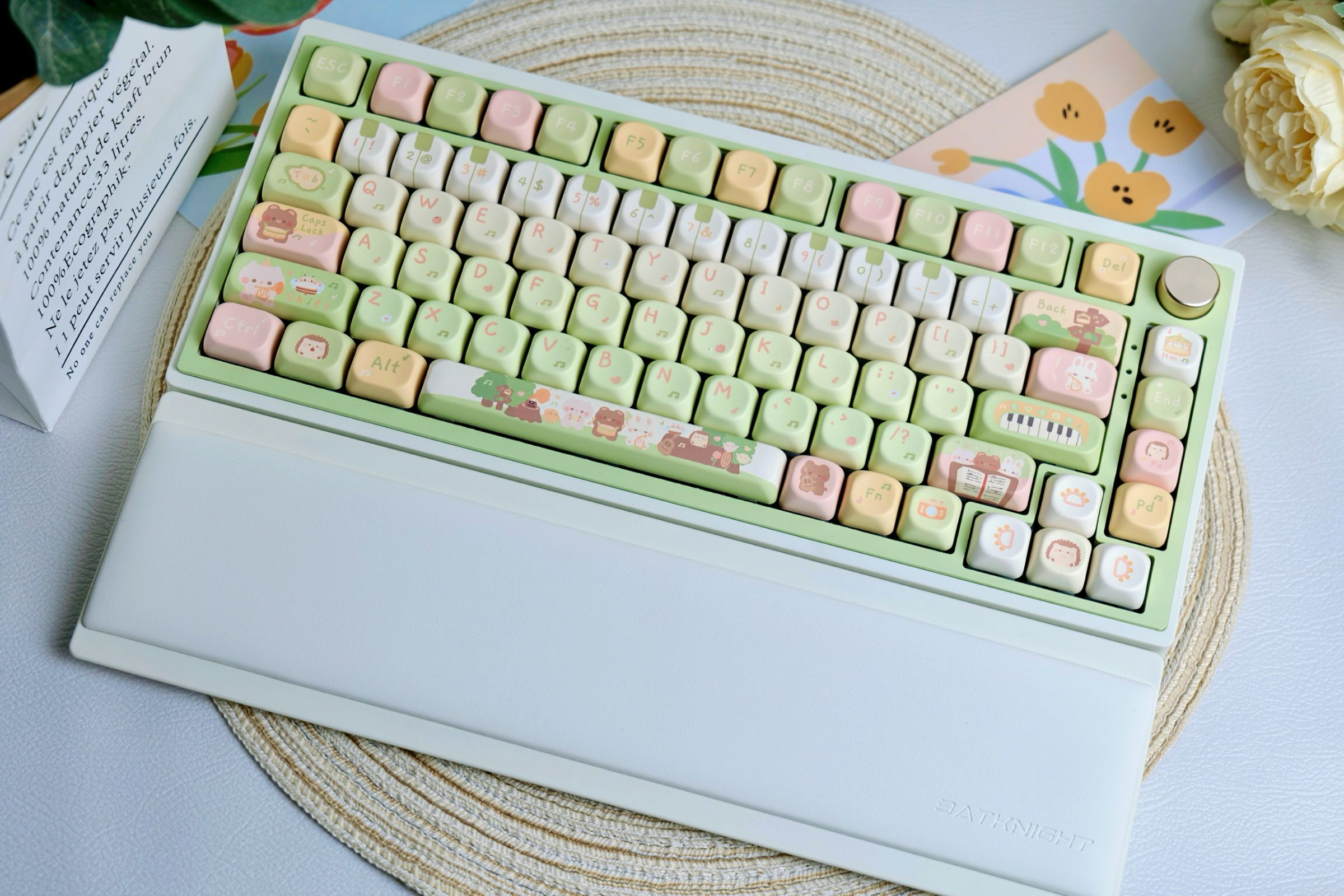

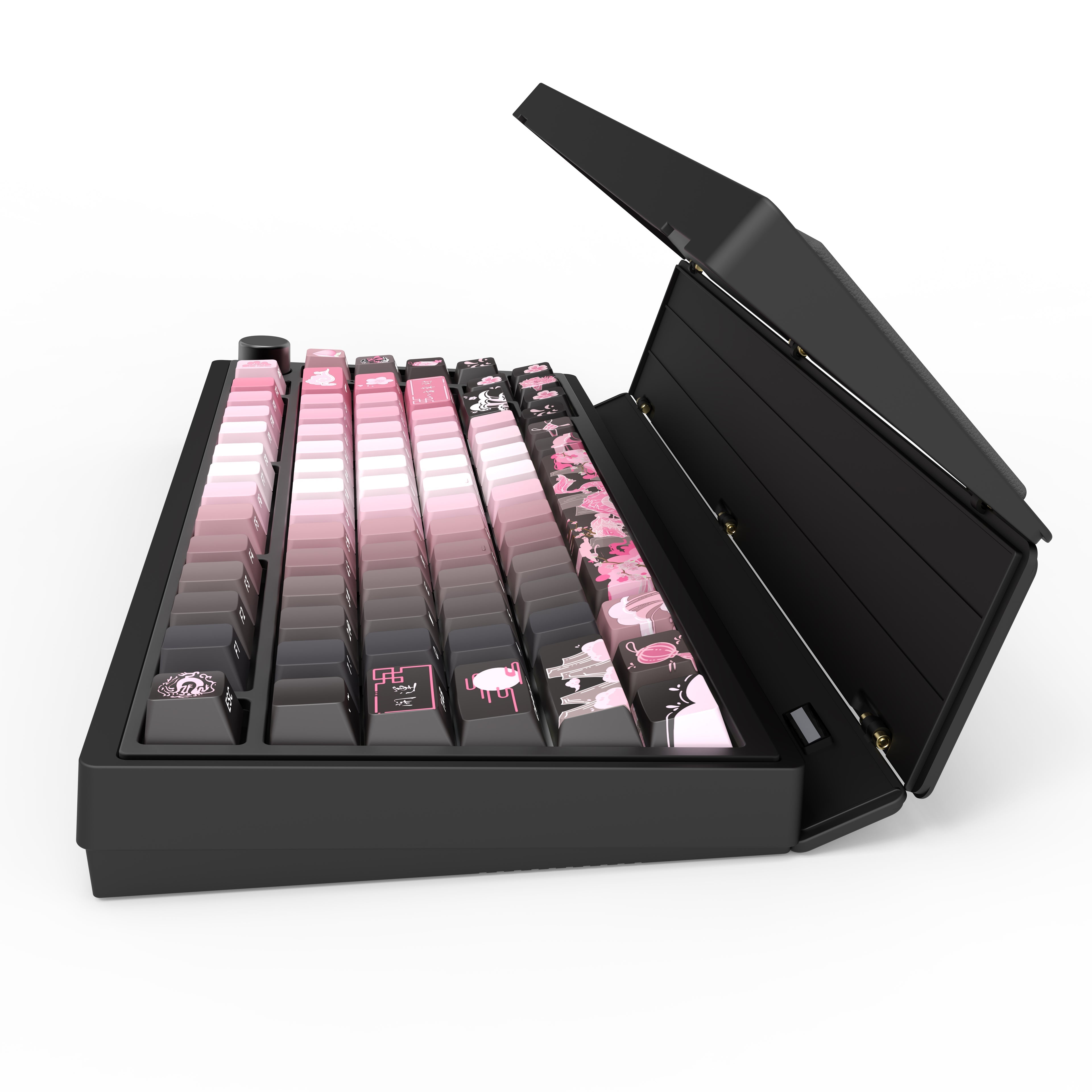

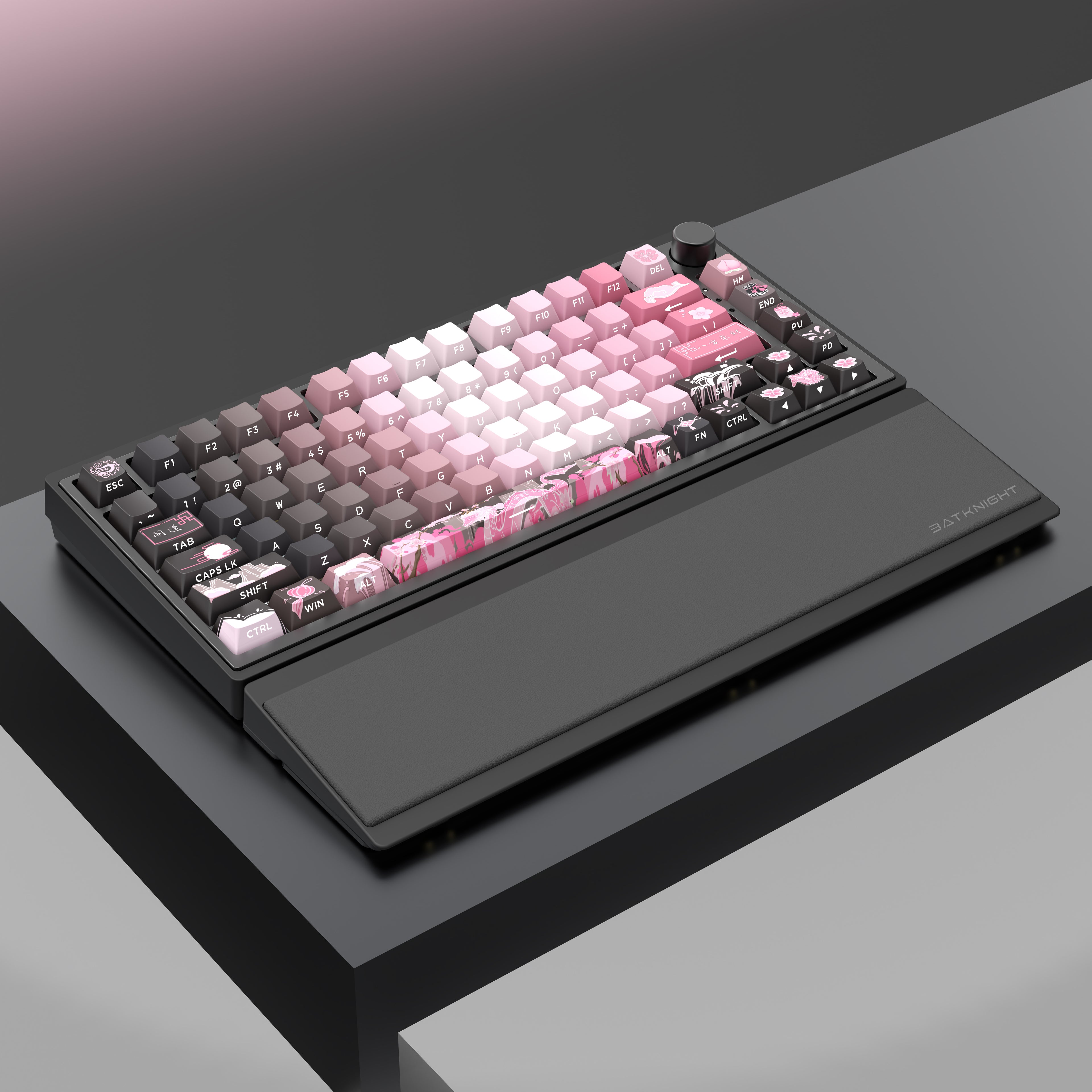

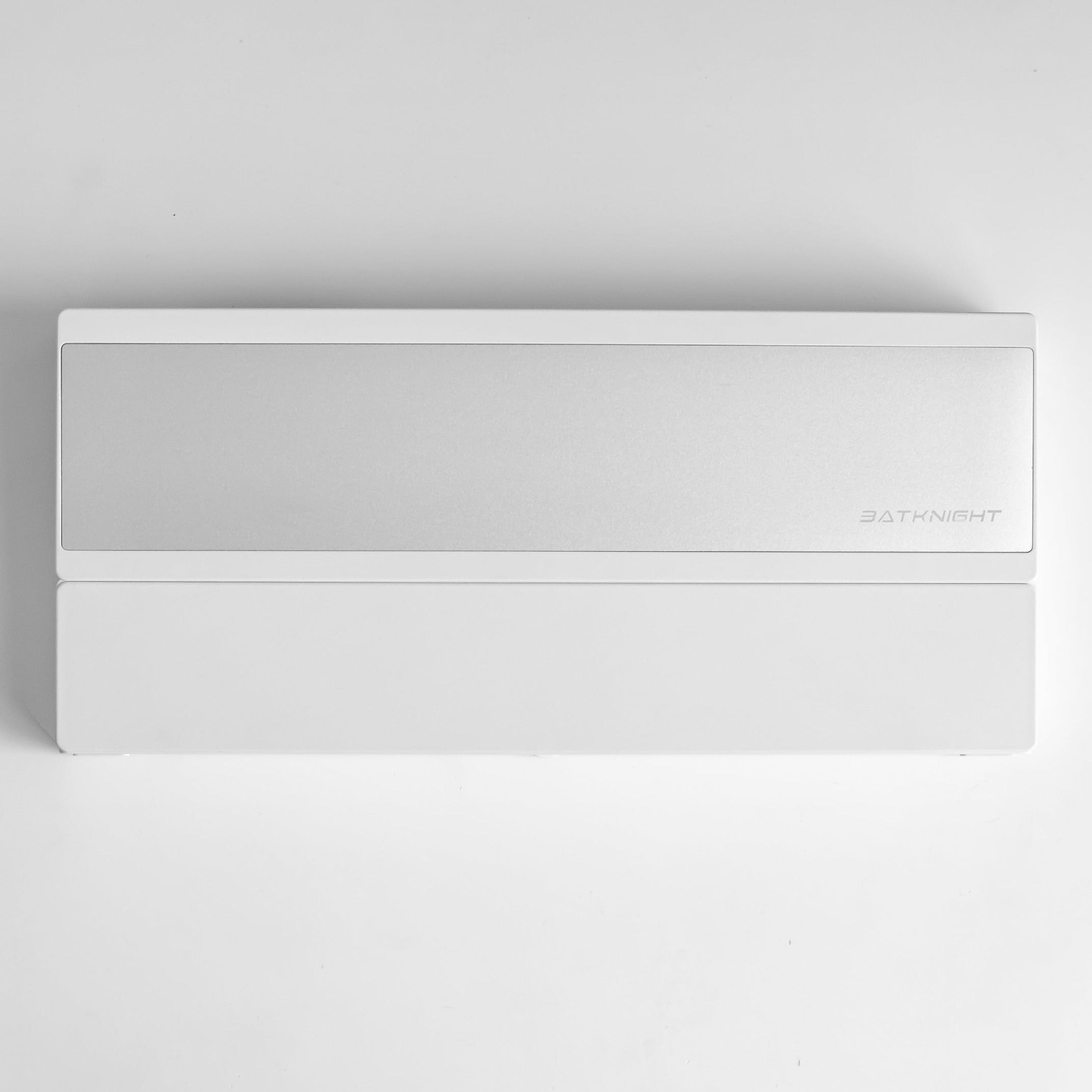

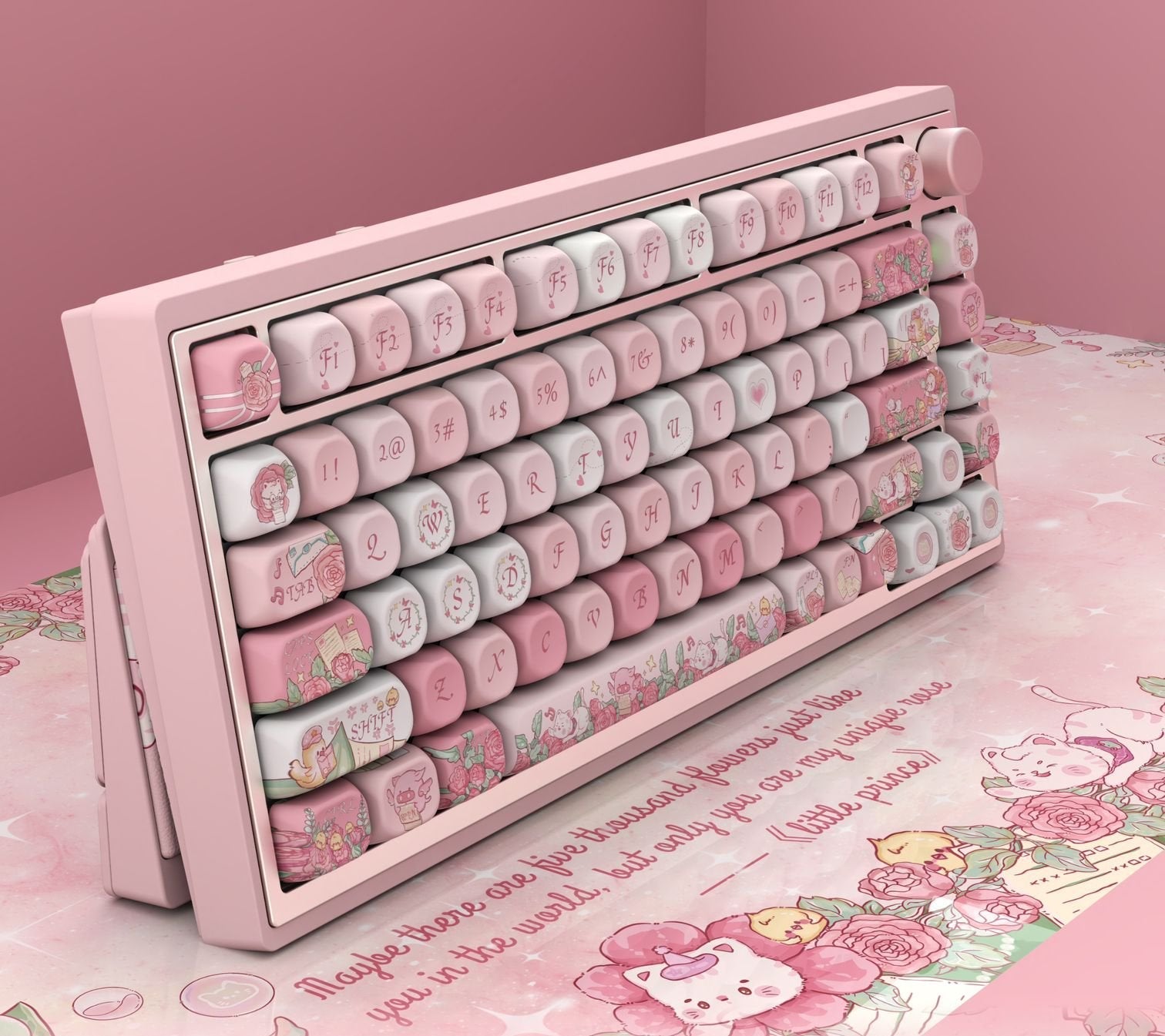

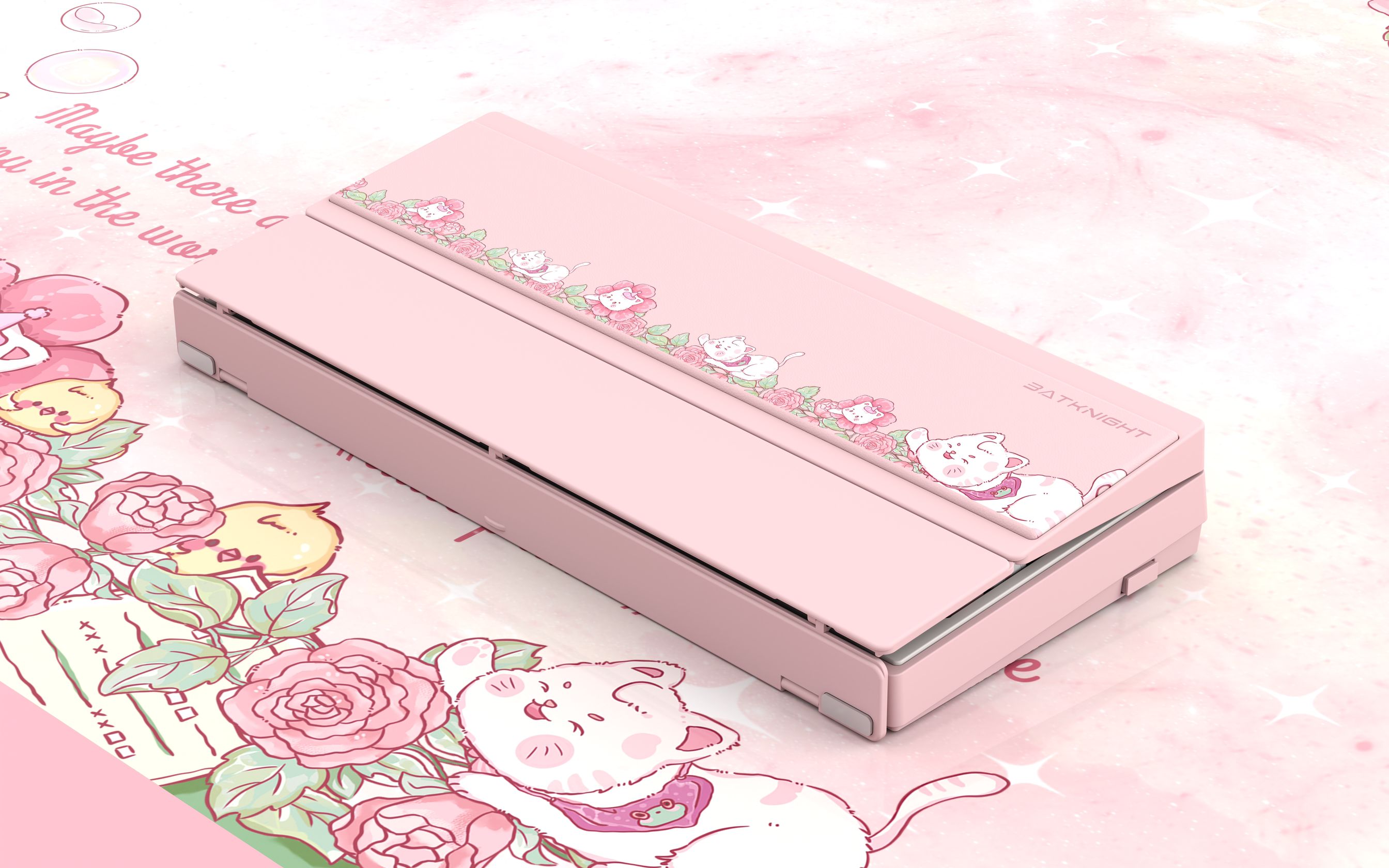

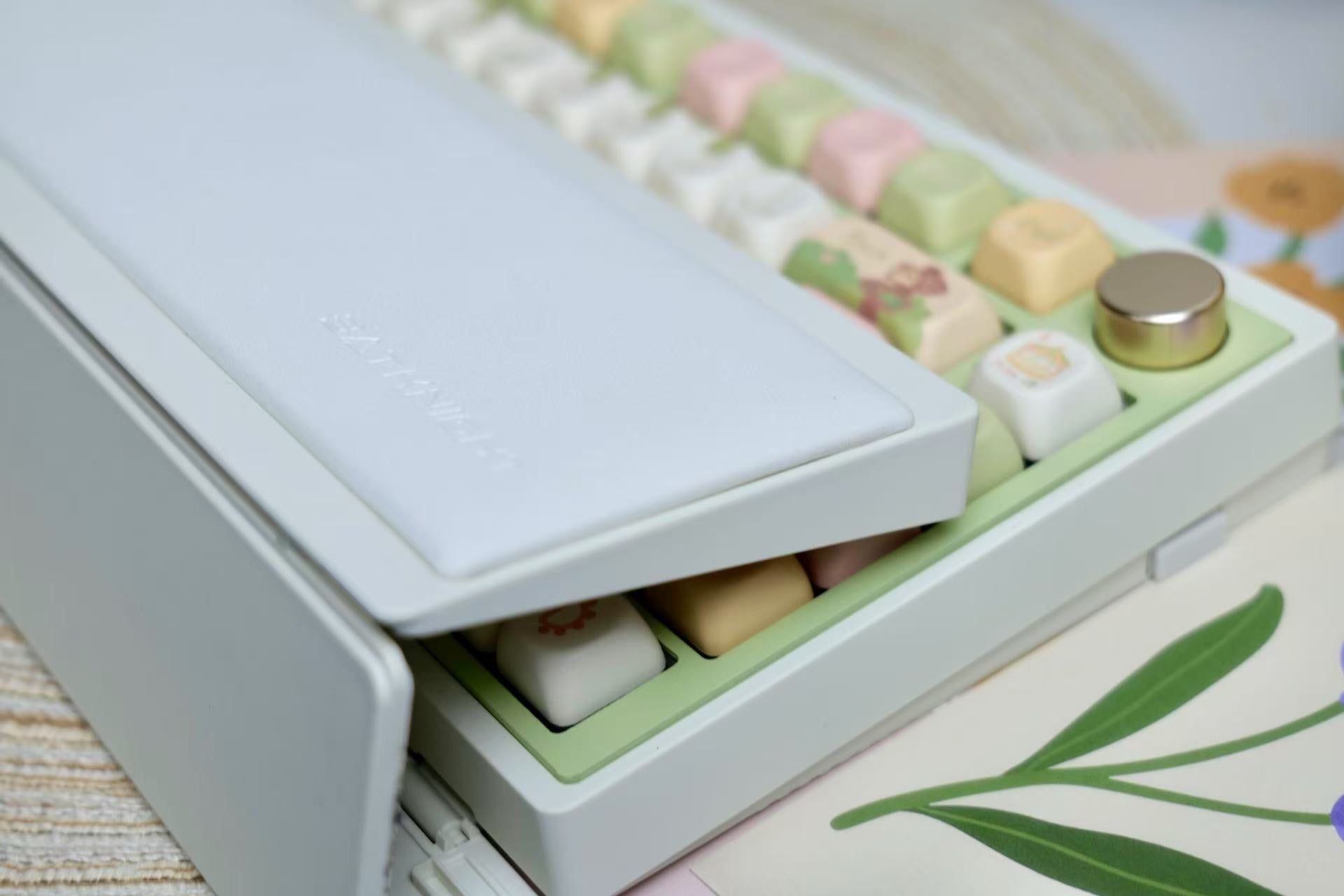

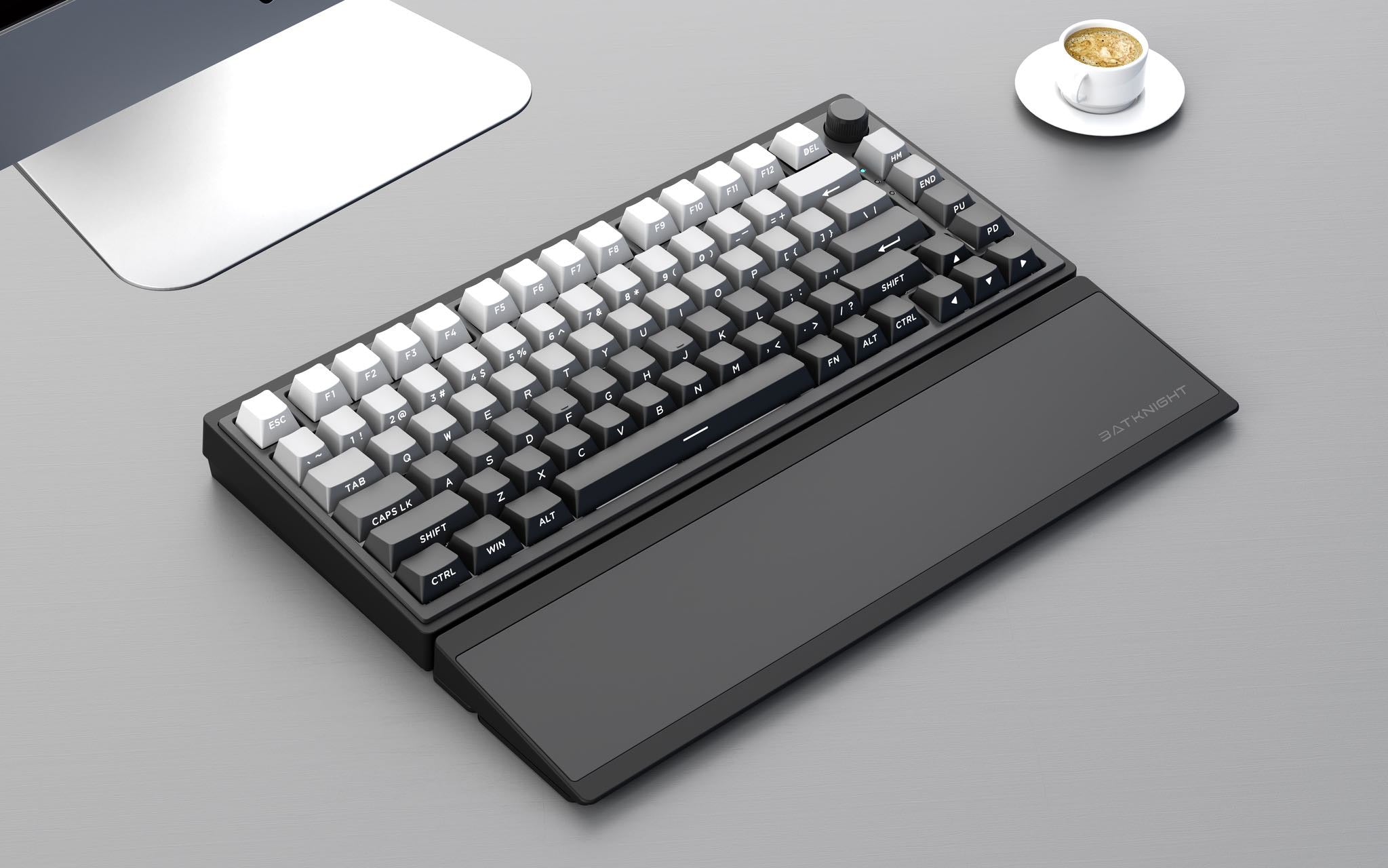

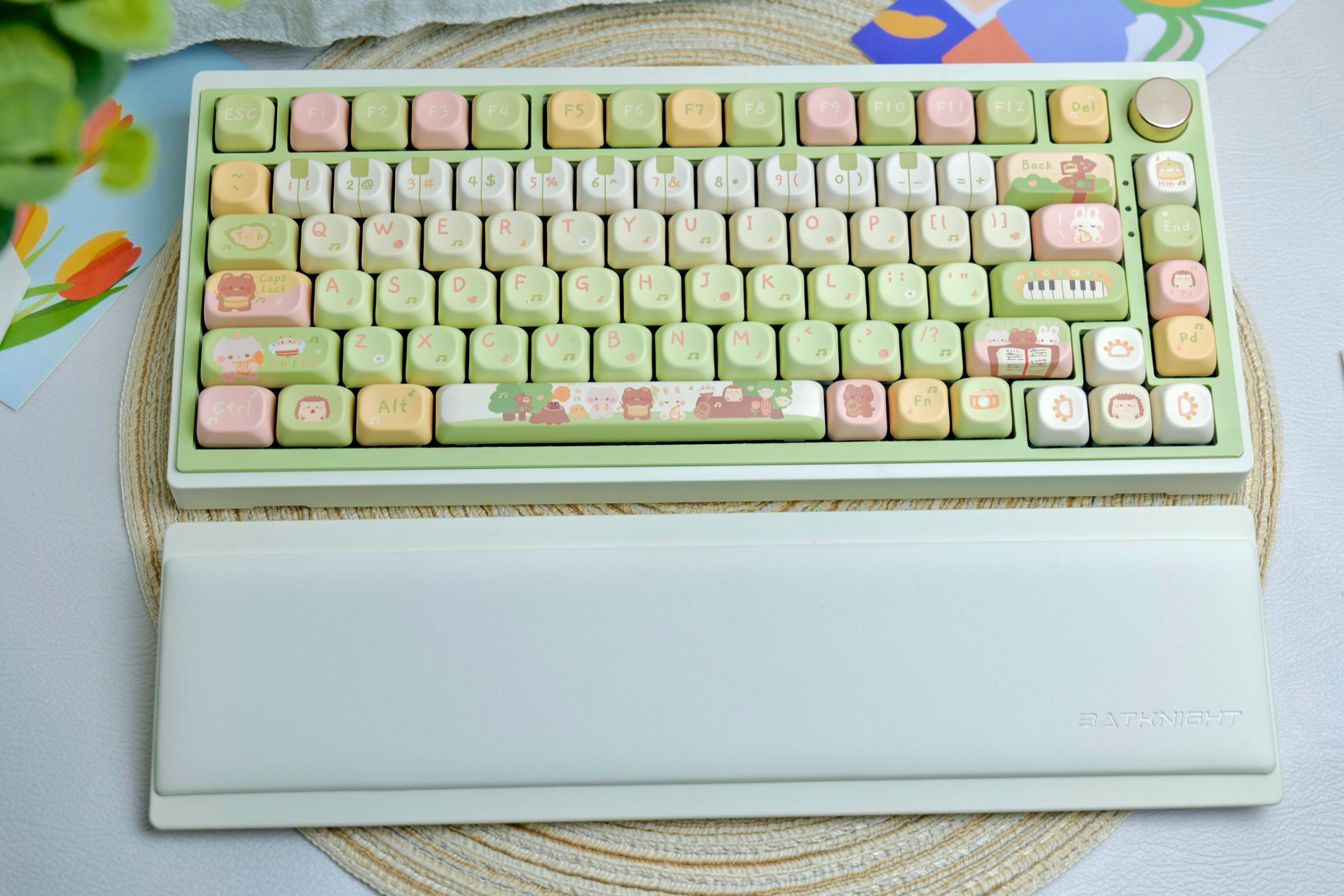

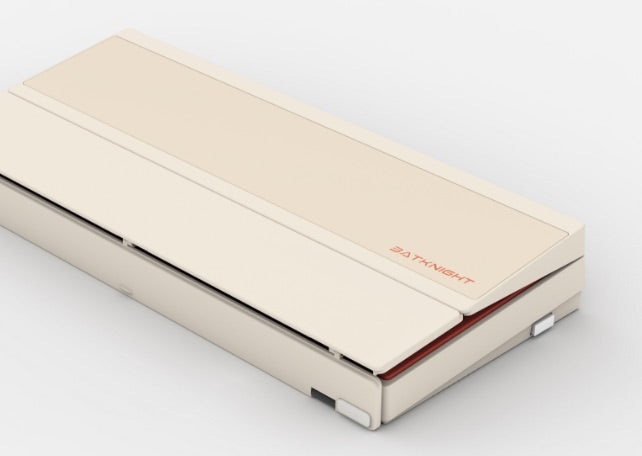

Wrist rest, dust cover, keyboard display stand 3-in-1

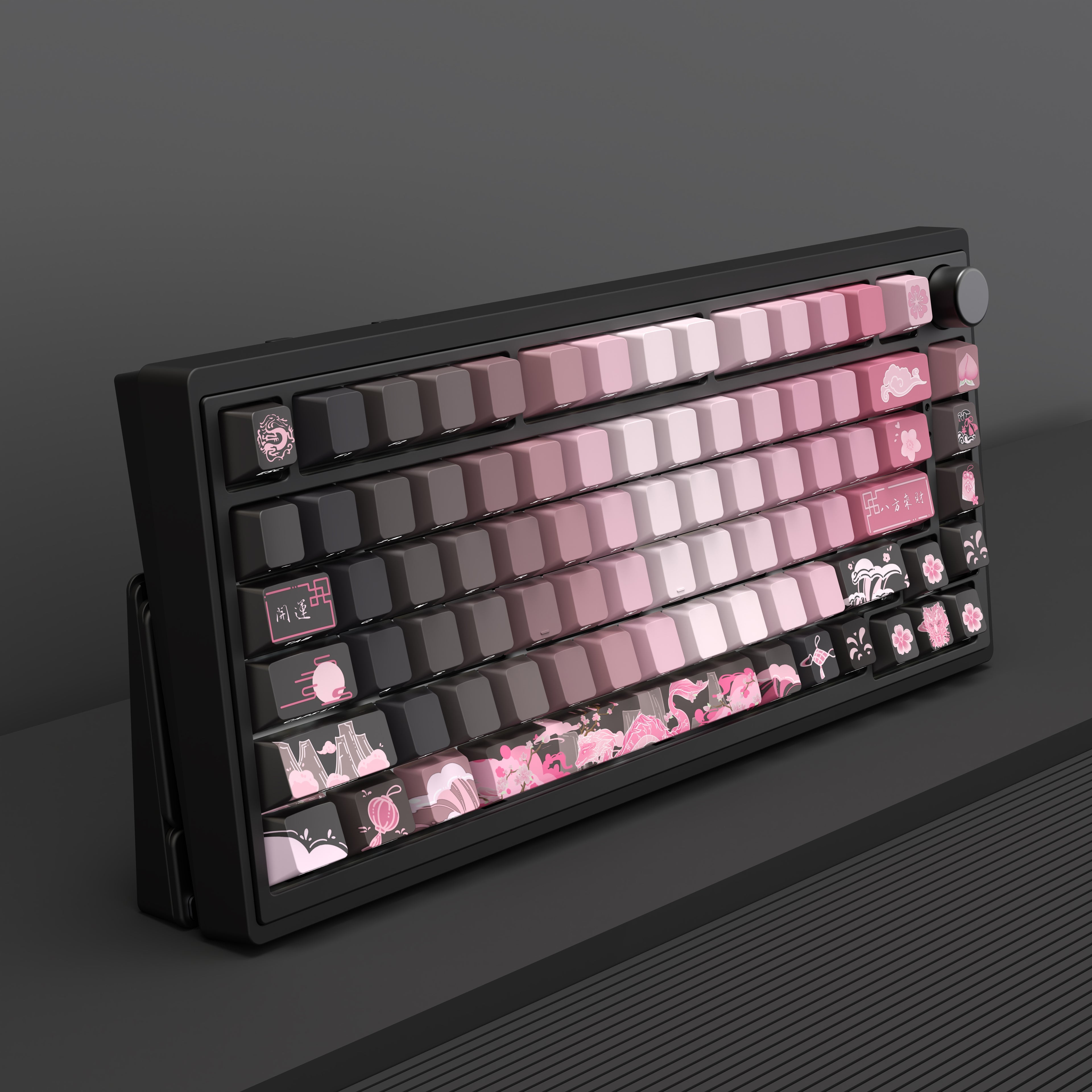

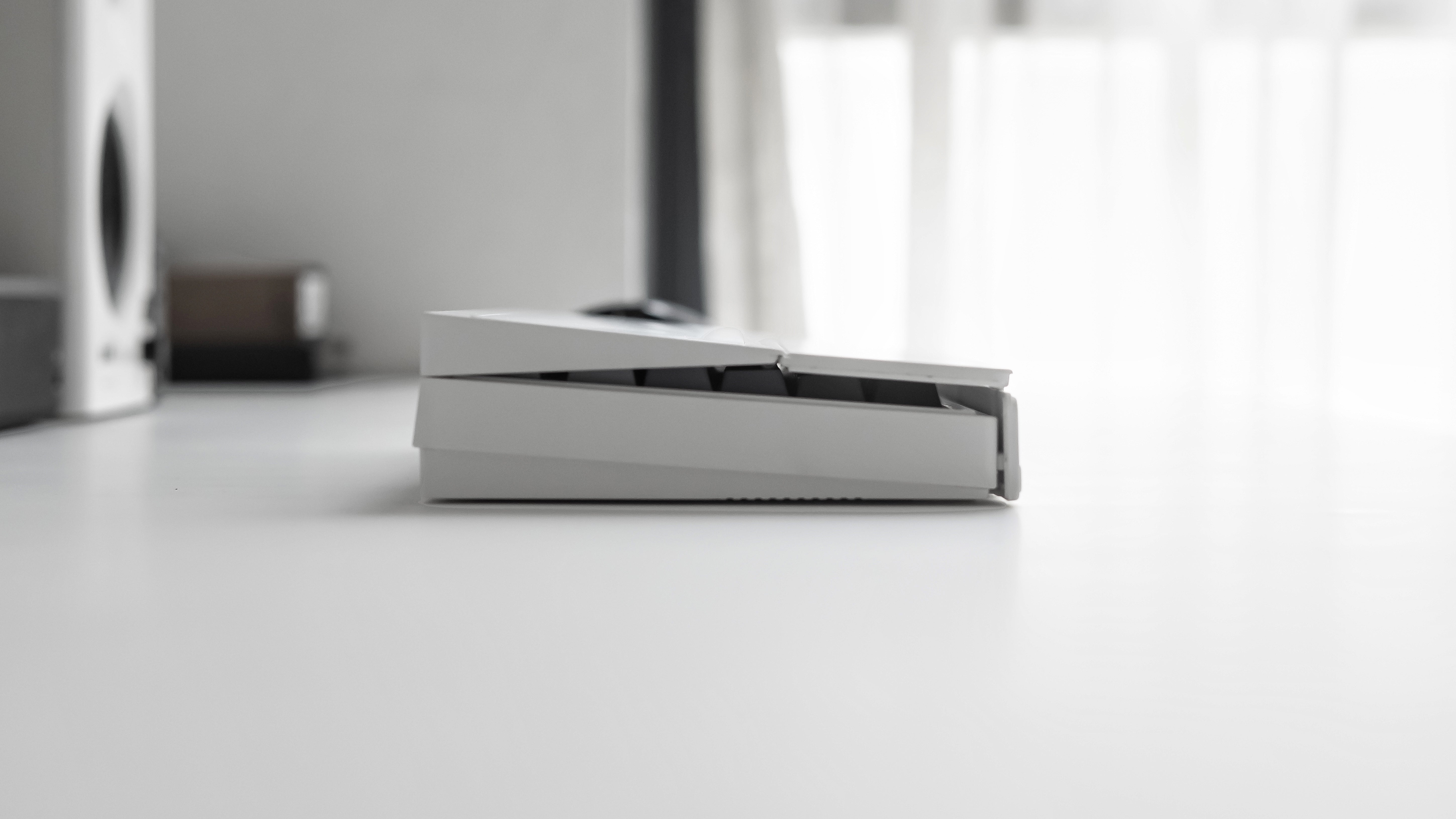

• The wrist rest can be used as a dust-proof cover, which in turn can be used as a keyboard display stand.
• The wrist rest is detachable.
• The contact surface between the wrist rest and the wrist is made of aluminum alloy, and the overall touch is delicate.

Hall switch/sensor intelligent magnetic control power supply

• The Hall switch controls the keyboard light through the magnet on the handrest and the switch device inside the keyboard
• When the handrest is turned over into a dust cover, it can automatically power off and sleep.
• When the handrest is unfolded, the power can be awakened to resume normal operation, preventing the dust cover from being accidentally touched and effectively protecting data intelligently.

Manual
New Software / Old Software

Note 1: This software can only be used with a wired, 2.4G connection.
Note 2: The software can only be used with the Windows system.
Note 3: The software does not contain any viruses, please feel free to download it.

Typing Test

Review

Specification

• Brand: Bat Knight

• Keyboard name: BK-75

• Number of keys: 80/82 keys+1 knob

• Mount: Gasket mount

• Product net weight: 1.4KG

• Size: 327mm*150mm（Wrist rest 90mm）*46mm

• Front height: 20mm
• Keycap Material:  PBT

• Keycap Process: Dye sublimation

• Keycap Thickness: 1.5mm
• Switch Name: Bat Knight Orchid V2

• Switch Type: Linear
• Switch Rating: 50 million presses

• Switch Actuation force: 40±10gf

• Switch Bottom out force: 50gf

• Switch Actuation travel: 2.0±0.6mm

• Switch Total travel: 3.3mm

• Standard factory lubed only

• Connection: Type-C

• Battery capacity: 4000mAh (RGB open: about 5 days RGB close: 15-20 days)
• Polling rate: Wired, 2.4G(1000Hz), Bluetooth(125Hz)

• Working voltage: DC 5V±5%

• Wired: DC 5V±0.5V

• Wireless: 3.3V--3.7V

• Working current:

• Wired: ≤500 MA

• Wireless: ＜210 MA

• PCB: flex cuts, 1.2mm thickness

• Wireless transmission distance: max around 8--10 meters

• Backlight: RGB, with programmable software

• OS support: Compatible with WIN, MAC OS

• Anti-ghosting keys: Full keys

• Cable length: 1.5m

Included

• Top/Bottom case (plastic, skin-like coating)
• 80/82 keys+1 knob
• Bat Knight V2 switch
• PC flex cuts plate
• Hot-swappable PCB
• High-quality Rogers poron pad
• IXPE pad
• PET pad
• Bottom pad
• Silicone pad
• Battery
• One-in-two keycaps/switches puller
• Cable

Warm reminder

• The product does not come with a charger. You can use the provided cable to connect to a mobile phone charger or computer USB for charging.
• Since the storage/long-distance transportation, the battery can not make sure is 100%, to ensure your normal use, please fully charge it for the first time.
• You can use the keyboard while charging, no need to wait. If you want to improve the charging efficiency, recommended to turn on the backlight for charging.
• If the keyboard is not used for a long time, it is best to charge the keyboard once a month or so. To prevent its built-in battery from entering the dormancy period and cannot be charged again.

Usage

• Please do not take apart or exchange any component, except if there are specially marked operations in the User Manual.
• Please do not put the product into water or any other liquid, for this product is not water-proof.
• Please disconnect the product from another device and remove it if any liquid splashes into it, for it may cause fire or electric shock if the users continue using it.
• Please make sure that the hands are dry when installing or taking apart the product to avoid getting an electric shock.
• Please do not expose the product close to the heat source or the fire directly.
• Please do not put the product into a strong magnetic field, for it may cause dysfunctions.

Operation Instruction

• Remove the keyboard and insert it into the computer USB PORT.
• Check whether the PC can recognize the keyboard correctly.
• Operate according to the User Manual.
• Please do not use the product in an extreme environment.

Abnormal Occurrence

Solutions to the conditions in which the device cannot be recognized, with no functions or abnormal functions:

• Check whether the USB ports of the computer or the keyboard are damaged;
• Check whether the USB port of the device is inserted correctly;
• Check whether computer settings are correct;
• Disconnect and reinsert;
• Restart the computer.

If the suggestions above cannot solve the problems, please contact us for further help.
